Toyota TERCEL — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-16130i198608-198808

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050i198608-198808

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16130i198608-198808

81615SOCKET AND WIRE, CLEARANCE LAMP

main81735-12180i198608-198808

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-16130i198608-198808

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16130i198608-198808

8155989132MOULDING, REAR COMBINATION LAMP, RH

main81559-89132

9018904022

main90189-04022

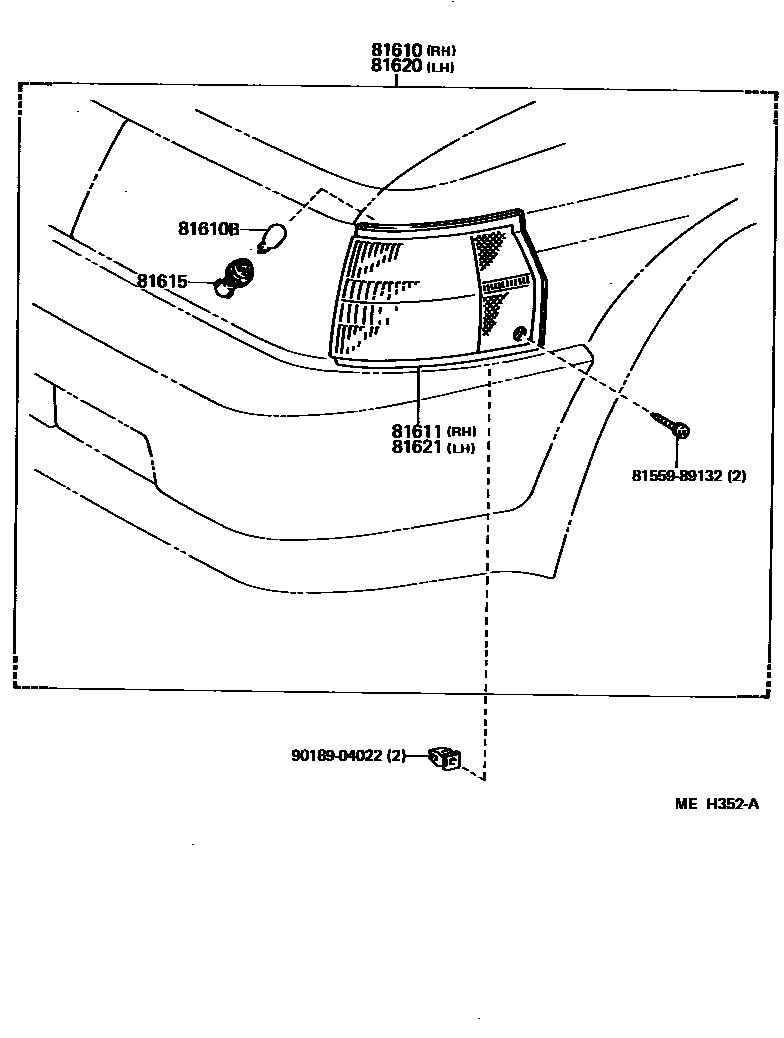

8 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota TERCEL

This section contains 8 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
