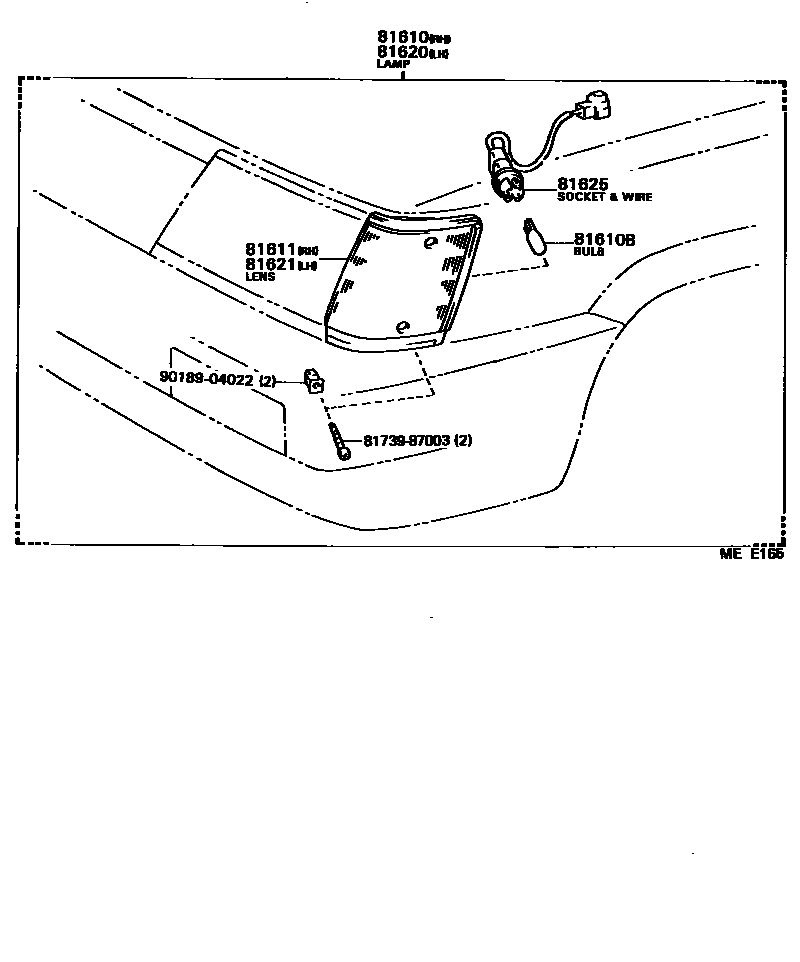

Toyota TERCEL — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-16090i198208-198608

INNER

main81610-16140i198608-198801

main81610-19395i198208-198608

main81730-19375i198208-198608

OUTER

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020×4i198208-198608

12V 3.8W,12V 3.8KW

main99132-12050×2i198608-198801

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16070i198208-198608

main81611-16100i198208-198608

INNER

main81611-16140i198608-198801

main81731-16010i198208-198608

OUTER

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-16070i198208-198608

main81620-16090i198208-198608

INNER

main81620-16140i198608-198801

main81740-19325i198208-198608

OUTER

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16070i198208-198608

main81621-16100i198208-198608

INNER

main81621-16140i198608-198801

main81741-16010i198208-198608

OUTER

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-16070i198208-198608

OUTER

8173987003

main81739-87003

9018904022

main90189-04022

8 parts on this diagram · 3 diagrams in section

FRONT CLEARANCE LAMP for Toyota TERCEL

This section contains 17 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, SOCKET PLUG, CLEARANCE LAMP.
