Toyota TERCEL — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-19315i198008-198207

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020×2i198008-198207

12V 3.8W,12V 3.8W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16030×2i198008-198207

81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81612-16010i198008-198207

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-19315i198008-198207

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16030×2i198008-198207

81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81612-16010i198008-198207

8161914050

main81619-14050

9356615514

main93566-15514

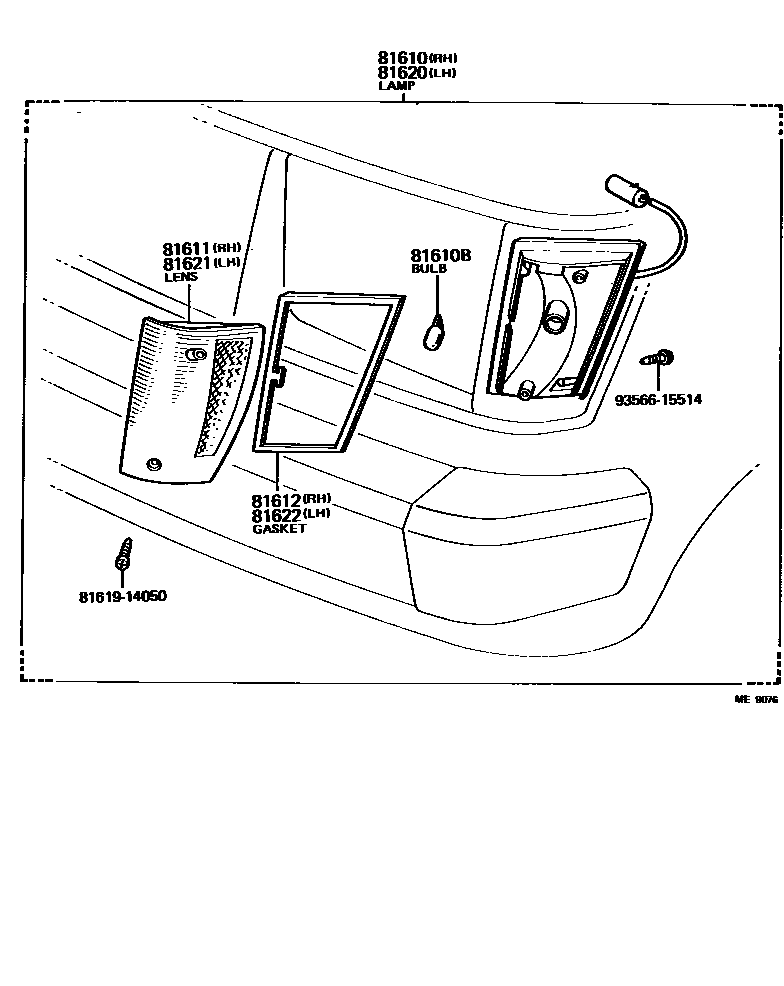

9 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota TERCEL

This section contains 9 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, LAMP ASSY, PARKING & CLEARANCE, LH.
