Toyota TERCEL — FRONT BUMPER & BUMPER STAY

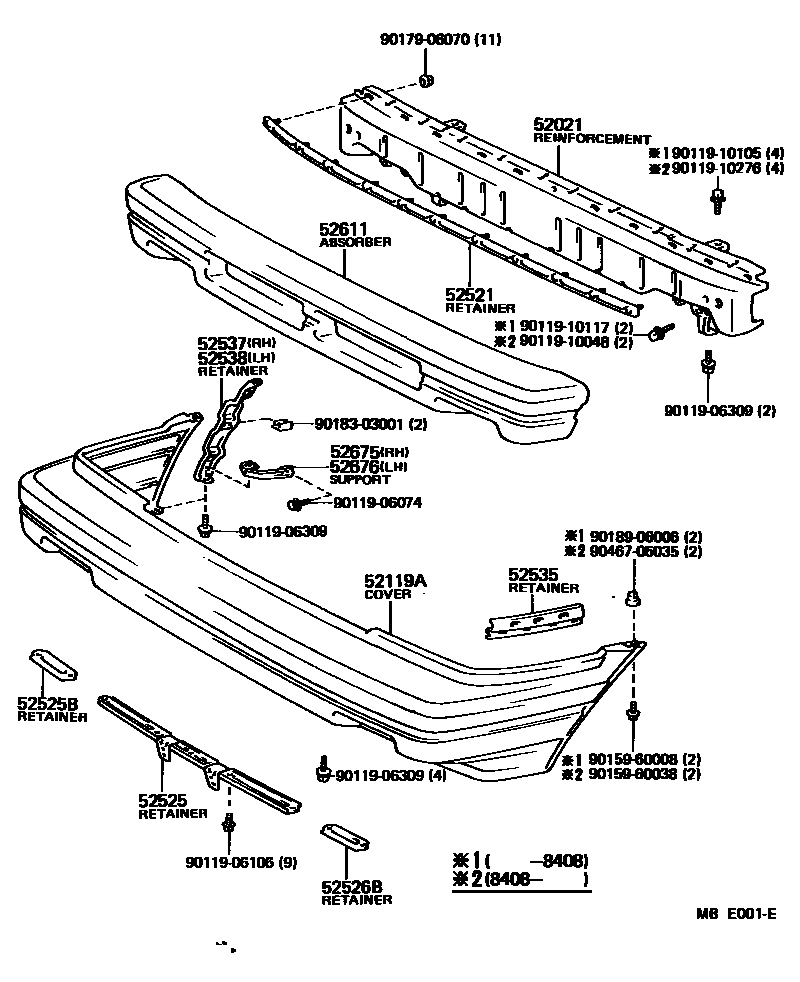

Parts diagram

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-16030i198208-198708

main52021-16040i198208-198801

52119ACOVER, FRONT BUMPER

main52119-16050i198208-198708

main52119-16090i198208-198801

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-16020i198208-198801

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-16010i198208-198801

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-16020i198208-198801

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52526-16020i198208-198801

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-16010×2i198208-198801

main52535-16020×2i198208-198708

52537RETAINER, FRONT BUMPER END, RH

main52537-16010i198208-198801

main52537-16020i198208-198708

52538RETAINER, FRONT BUMPER END, LH

main52538-16010i198208-198801

main52538-16020i198208-198708

52611ABSORBER, FRONT BUMPER ENERGY

main52611-16030i198208-198801

52675SUPPORT, FRONT BUMPER LOWER SIDE, RH

main52675-16010i198208-198801

52676SUPPORT, FRONT BUMPER LOWER SIDE, LH

main52676-16010i198208-198801

9011906074

main90119-06074

9011906106

main90119-06106

9011906309

main90119-06309

9011910048

main90119-10048

9011910105

main90119-10105

9011910117

main90119-10117

9011910276

main90119-10276

9015960008

main90159-60008

9015960038

main90159-60038

9017906070

main90179-06070

9018303001

main90183-03001

9018906006

main90189-06006

9046705035

main90467-05035

25 parts on this diagram · 1 diagram in section

FRONT BUMPER & BUMPER STAY for Toyota TERCEL

This section contains 25 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota TERCEL. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, COVER, FRONT BUMPER, RETAINER, FRONT BUMPER, UPPER CENTER, RETAINER, FRONT BUMPER, LOWER CENTER, RETAINER, FRONT BUMPER, LOWER SIDE RH.
