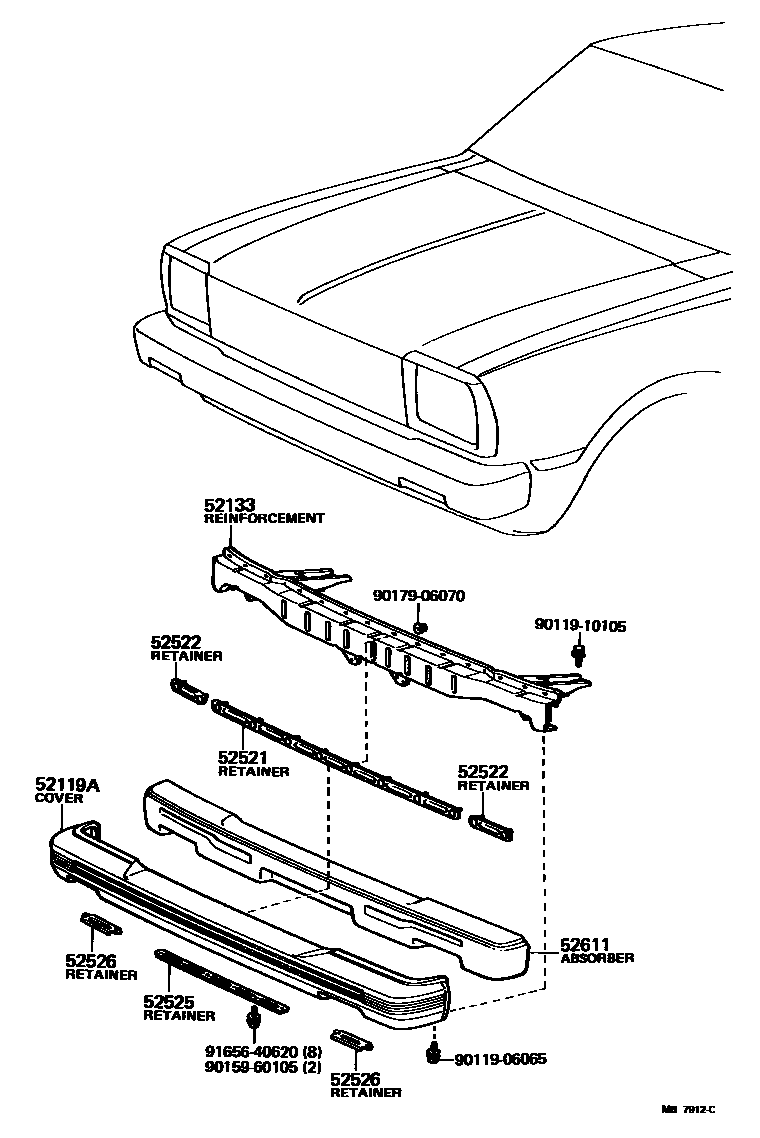

Toyota TERCEL — FRONT BUMPER & BUMPER STAY

Parts diagram

52119ACOVER, FRONT BUMPER

main52119-16020i197908-198008

main52119-16021i198008-198207

52133REINFORCEMENT, FRONT BUMPER

main52021-16020i197908-198008

main52021-16021i198008-198203

main52021-16022i198203-198207

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-16010i197908-198207

52522RETAINER, FRONT BUMPER UPPER SIDE

main52522-12010×2i198008-198207

main52522-16010×2i197908-198008

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-16020i197908-198207

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-16020×2i197908-198207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-16020i197908-198008

main52611-16021i198008-198207

9011906065

main90119-06065

9011910105

main90119-10105

9015960105

main90159-60105

9017906070

main90179-06070

9165640620

main91656-40620

12 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota TERCEL

This section contains 16 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota TERCEL. Key components include: SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, REINFORCEMENT, FRONT BUMPER, RETAINER, FRONT BUMPER, UPPER CENTER.
