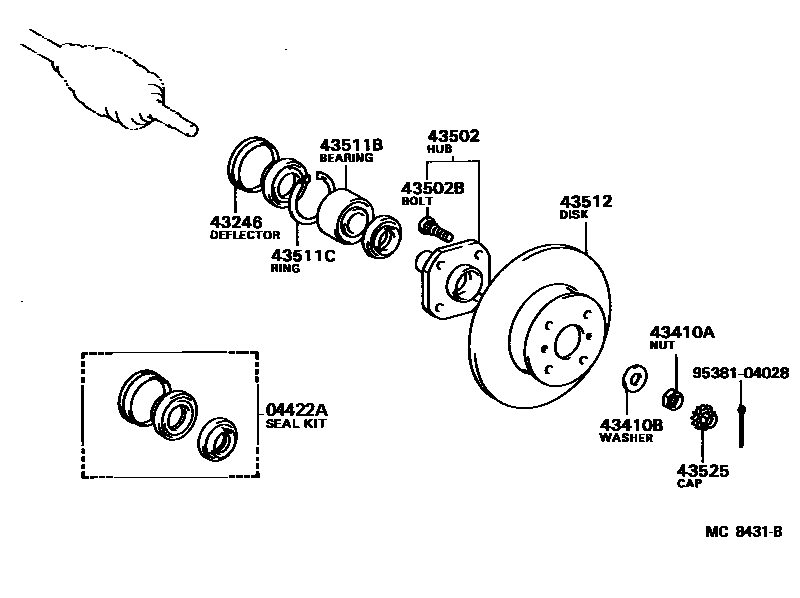

Toyota TERCEL — FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-16020×2iAL2#198208-198801

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-16020×2iAL2#198208-198801

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19001×2iAL2#198208-198801

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20006×2iAL2#198208-198409

main90201-20012×2iAL2#198409-198801

43502HUB SUB-ASSY, FRONT AXLE

main43502-16020×2iAL2#198208-198801

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047×8iAL2#198208-198801

43511BBEARING (FOR FRONT AXLE HUB)

main90363-35016×2iAL2#198208-198801

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001×2iAL2#198208-198801

OD=77

43512DISC, FRONT

main43512-16030×2iAL2#198208-198401

main43512-16031×2iAL2#198401-198801

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010×2iAL2#198208-198801

9538104028

main95381-04028

11 parts on this diagram · 1 diagram in section
