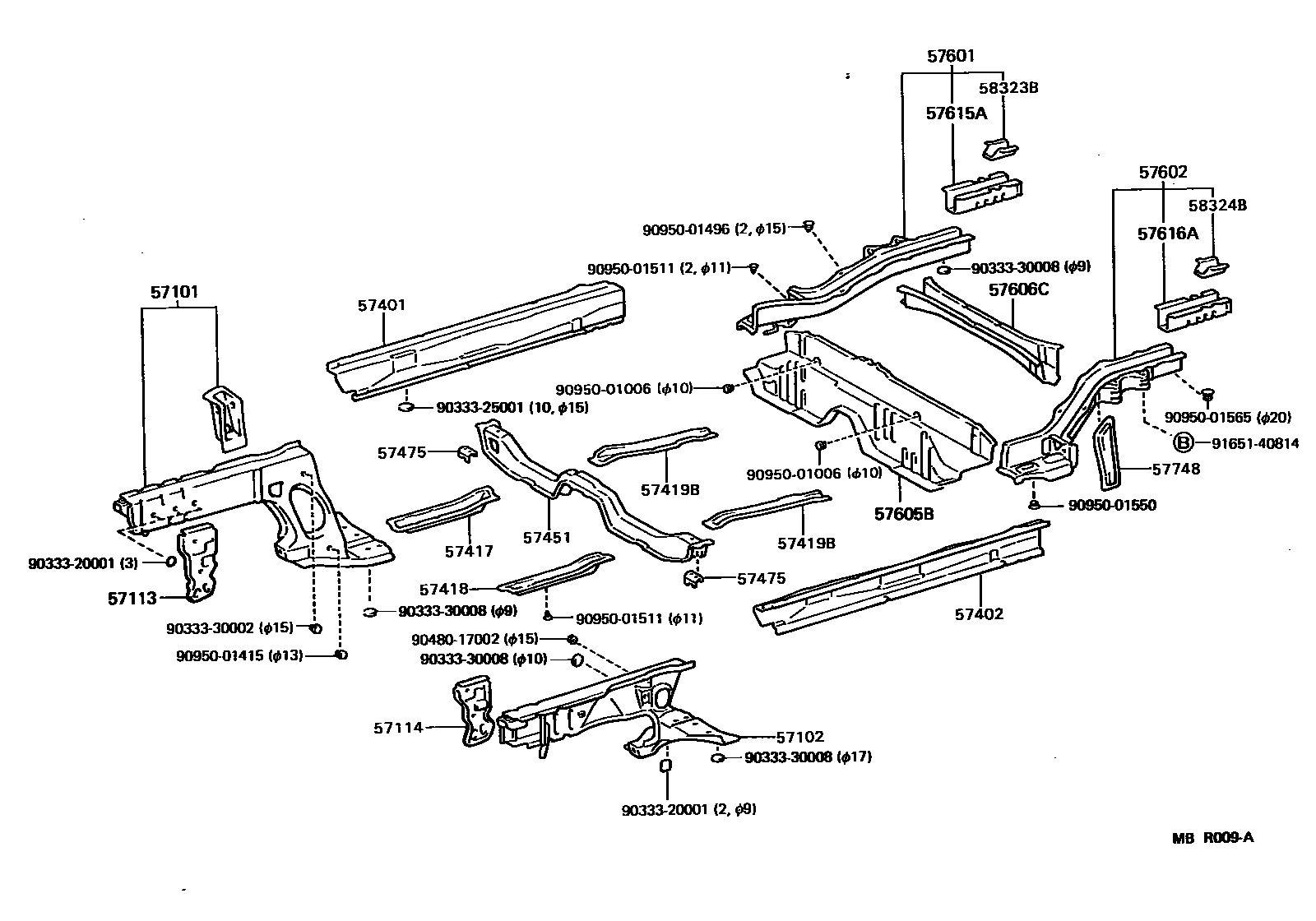

Toyota TERCEL — FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
57451MEMBER, FRONT FLOOR CROSS
57475PLATE, FRONT FLOOR CROSSMEMBER
RH
LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57748REINFORCEMENT, LATERAL ROD BRACKET
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
9033320001
main90333-20001
9033325001
main90333-25001
9033330002
main90333-30002
9033330008
main90333-30008
9048017002
main90480-17002
9095001006
main90950-01006
9095001415
main90950-01415
9095001496
main90950-01496
9095001511
main90950-01511
9095001550
main90950-01550
9095001565
main90950-01565
9165140814
main91651-40814
32 parts on this diagram · 1 diagram in section
FLOOR SIDE MEMBER for Toyota TERCEL
This section contains 32 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota TERCEL. Key components include: MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH, EXTENSION, FRONT SIDE MEMBER, RH, EXTENSION, FRONT SIDE MEMBER, LH, MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH.
