Toyota TERCEL — FLOOR PAN & LOWER BACK PANEL

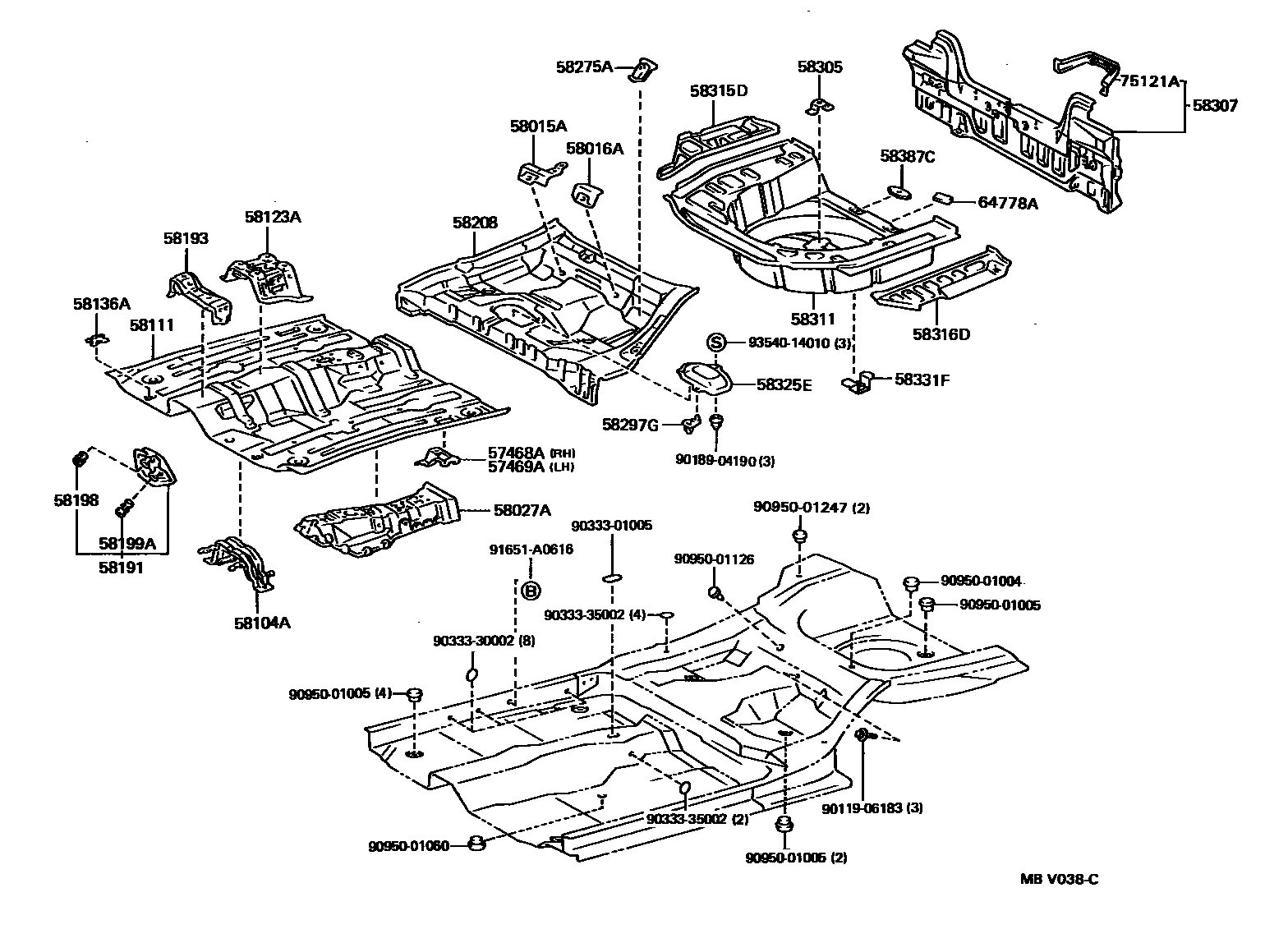

Parts diagram
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
main57468-10030i199009-199409
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
main57469-10030i199009-199409
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
main58015-10020i199009-199409
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
main58016-10020i199009-199409
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
main58027-16040i199009-199208
main58027-16070i199208-199401
sub90269-03067
main58027-16071i199401-199409
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
main58104-16010i199009-199401
sub90269-03067
main58104-16011i199401-199409
58111PAN, FRONT FLOOR
main58111-16050i199009-199208
sub58111-16900
main58111-16090i199208-199409
sub58111-16900
58123ASUPPORT, SHIFT & SELECT LEVER
main58123-10040i199009-199208
main58123-10050i199404-199409
main58123-16040i199208-199209
main58123-16050i199404-199409
58136ACOVER, FRONT FLOOR SERVICE HOLE
main58136-12020×2i199009-199010
main58136-16010×2i199010-199409
58191FOOTREST, FRONT FLOOR
main58191-16060i199009-199409
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
main58193-10030i199009-199208
main58193-16040i199208-199409
58198CLIP, FOOTREST
main58198-16020i199009-199409
58199ACLIP, FOOTREST, NO.2
main58199-16010i199009-199409
58208PAN, CENTER FLOOR
main58211-10140i199009-199409
sub58211-10142
sub58313-16030
sub58314-16090
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
main58275-16020×2i199009-199409
58297GRETAINER, FLOOR CLAMP
main58297-10010×2i199009-199409
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
main58305-10011i199009-199409
58307PANEL SUB-ASSY, BODY LOWER BACK
main58307-16340i199208-199409
CHILE SPEC
main58307-16350i199009-199409
58311PAN, REAR FLOOR
main58311-16130i199009-199403
main58311-16131i199403-199405
main58311-16132i199405-199409
sub58311-16160
sub58313-16030
sub58314-16090
58315DEXTENSION, REAR FLOOR PAN, RH
main58315-16050i199009-199409
58316DEXTENSION, REAR FLOOR PAN, LH
main58316-16070i199009-199409
58325ECOVER, REAR FLOOR SERVICE HOLE
main58325-10020i199009-199409
sub58325-10021
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
main58331-10010×3i199009-199401
main58331-10011×3i199401-199409
58387CPLATE, REAR FLOOR FINISH
main58387-10010×2i199009-199409
64778APROTECTOR, SPARE WHEEL
main64778-16020×2i199208-199309
CHILE SPEC
75121ABRACKET, REAR LICENSE PLATE
main75122-16020i199208-199409
CHILE SPEC
9011906183
main90119-06183
9018904190
main90189-04190
9033301005
main90333-01005
9033330002
main90333-30002
9033335002
main90333-35002
9095001004
main90950-01004
9095001005
main90950-01005
9095001060
main90950-01060
9095001126
main90950-01126
9095001247
main90950-01247
91651A0616
main91651-A0616
9354014010
main93540-14010

38 parts on this diagram · 1 diagram in section
