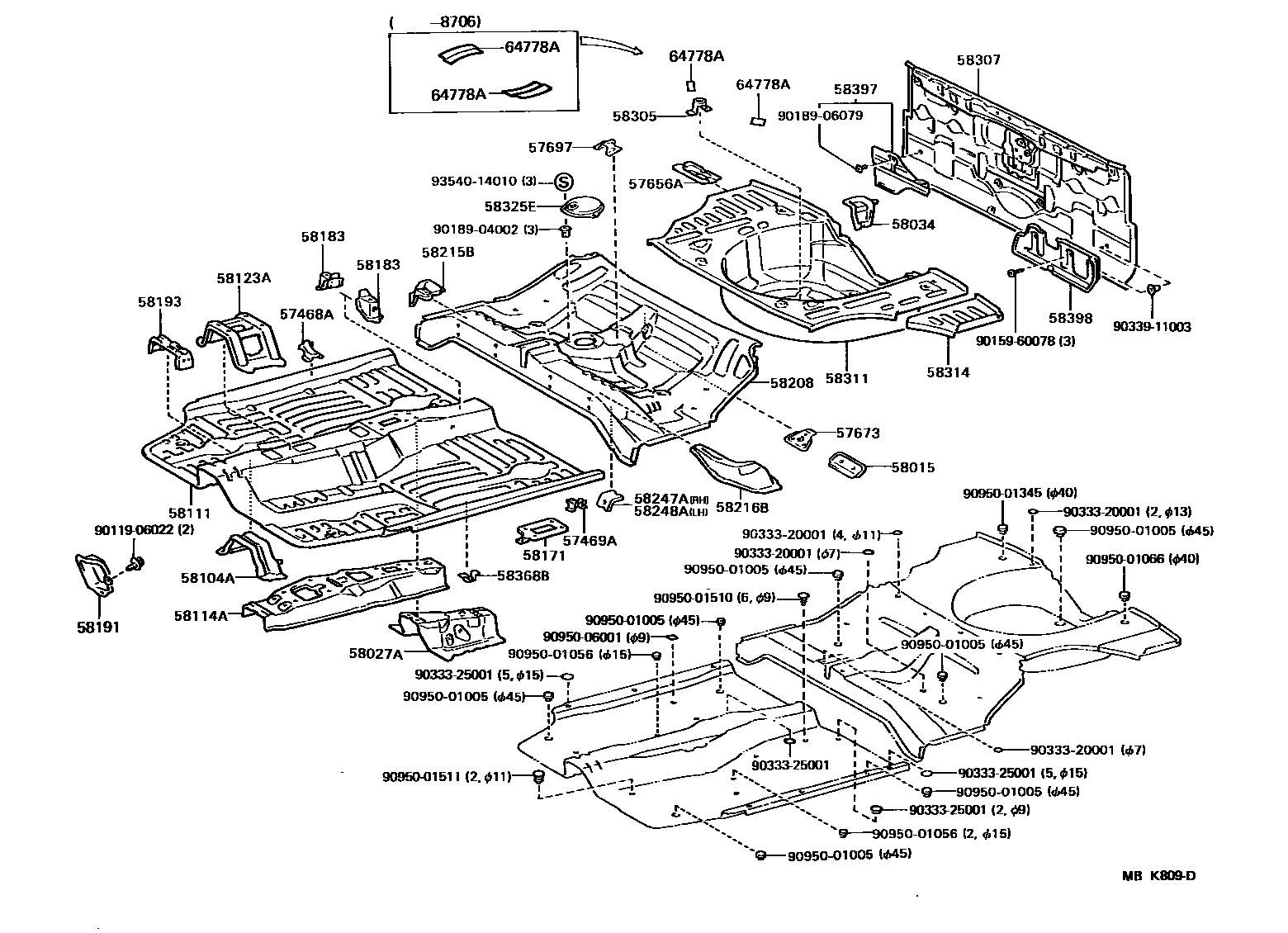

Toyota TERCEL — FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57697RETAINER, REAR SEAT CUSHION
W/FIXED CUSHION REAR SEAT
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58208PAN, CENTER FLOOR
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
W/FIXED CUSHION REAR SEAT
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
W/FIXED CUSHION REAR SEAT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58368BBRACKET, FUEL TUBE, NO.2
58397COVER, LOWER BACK, OUTER RH
58398COVER, LOWER BACK, OUTER LH
9011906022
main90119-06022
9015960078
main90159-60078
9018904002
main90189-04002
9018906079
main90189-06079
9033320001
main90333-20001
9033325001
main90333-25001
9033911003
main90339-11003
9095001005
main90950-01005
9095001056
main90950-01056
9095001066
main90950-01066
9095001345
main90950-01345
9095001510
main90950-01510
9095001511
main90950-01511
9095006001
main90950-06001
9354014010
main93540-14010
45 parts on this diagram · 2 diagrams in section
