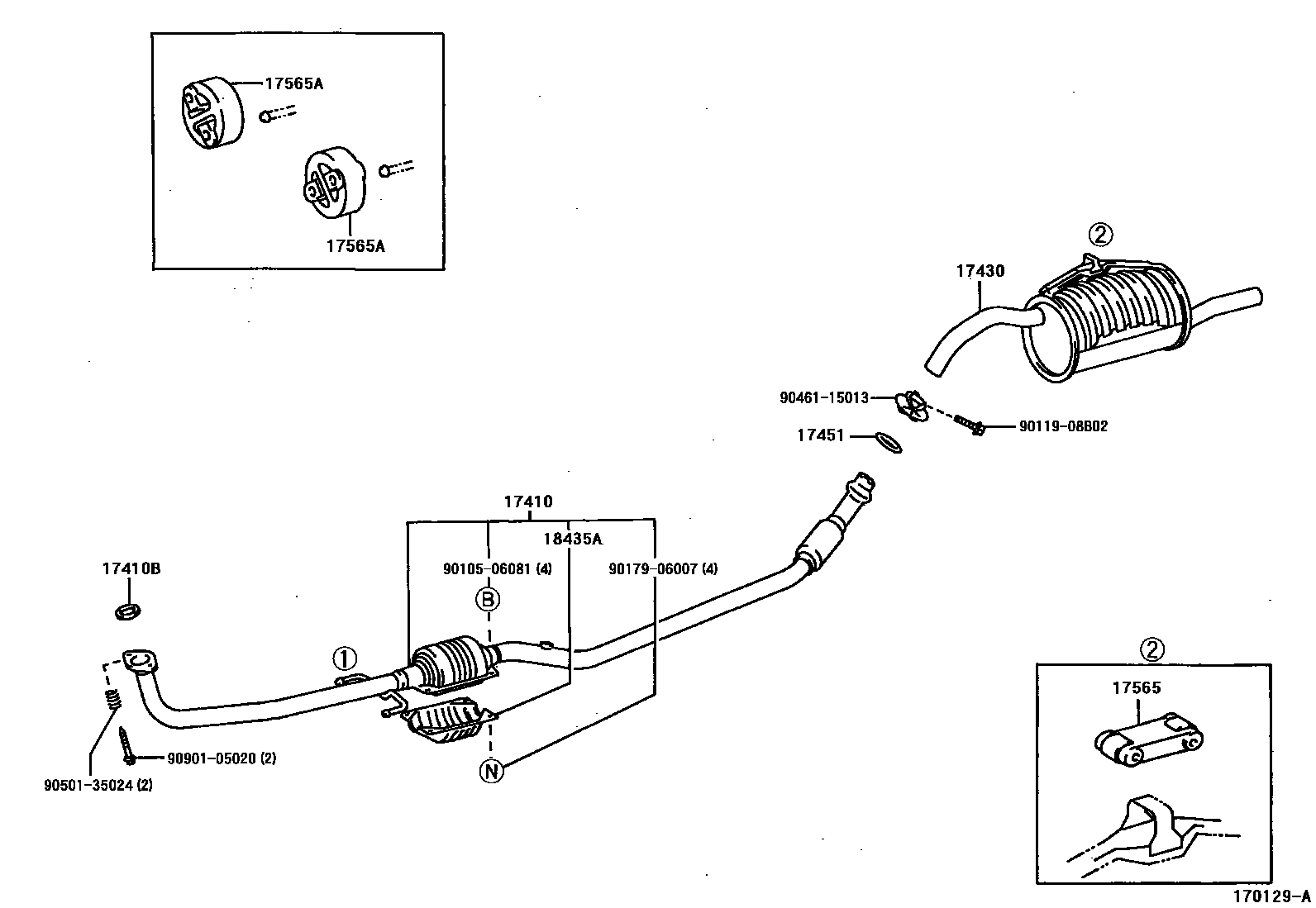

Toyota TERCEL — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
18435APROTECTOR, MONOLITHIC CONVERTER
9010506081
main90105-06081
9011908B02
main90119-08B02
9017906007
main90179-06007
9046115013
main90461-15013
9050135024
main90501-35024
9090105020
main90901-05020
13 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota TERCEL
This section contains 13 genuine Toyota parts for the EXHAUST PIPE system of the Toyota TERCEL. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL, SUPPORT, EXHAUST PIPE, NO.5.
