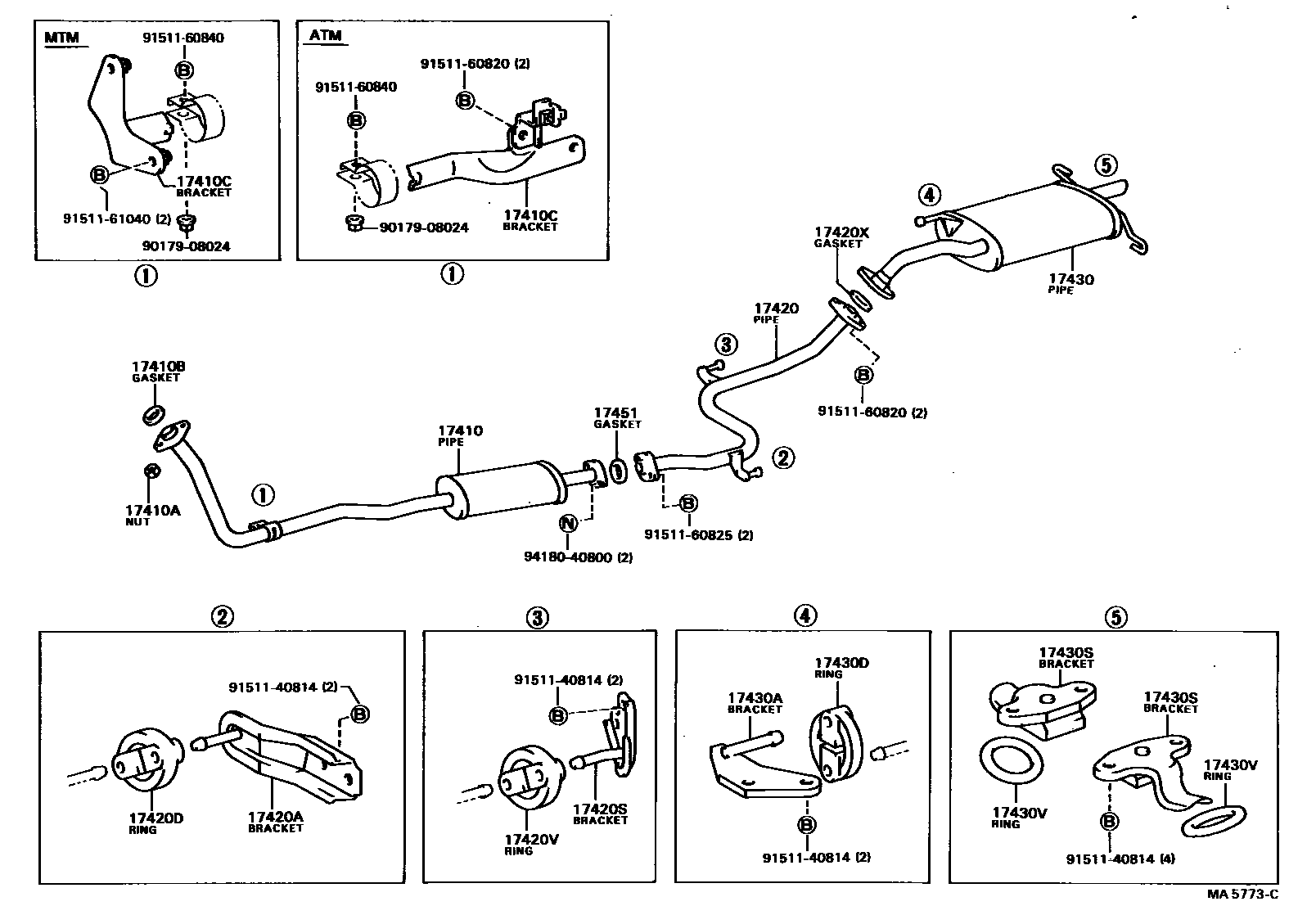

Toyota TERCEL — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17420PIPE ASSY, EXHAUST, CENTER
CARIFORNIA SPEC
17420ABRACKET, EXHAUST PIPE CENTER, FRONT
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420SBRACKET, EXHAUST PIPE CENTER, REAR
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
COLD SPEC
CALIFORNIA SPEC
COLD SPEC
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
RR
FR
RR,CALIFORNIA SPEC
9017908024
main90179-08024
9151140814
main91511-40814
9151160820
main91511-60820
9151160825
main91511-60825
9151160840
main91511-60840
9151161040
main91511-61040
9418040800
main94180-40800
23 parts on this diagram · 4 diagrams in section
EXHAUST PIPE for Toyota TERCEL
This section contains 43 genuine Toyota parts for the EXHAUST PIPE system of the Toyota TERCEL. Key components include: CONVERTER ASSY, W/CATALYST, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, BRACKET, EXHAUST PIPE FRONT (FOR FRONT).
