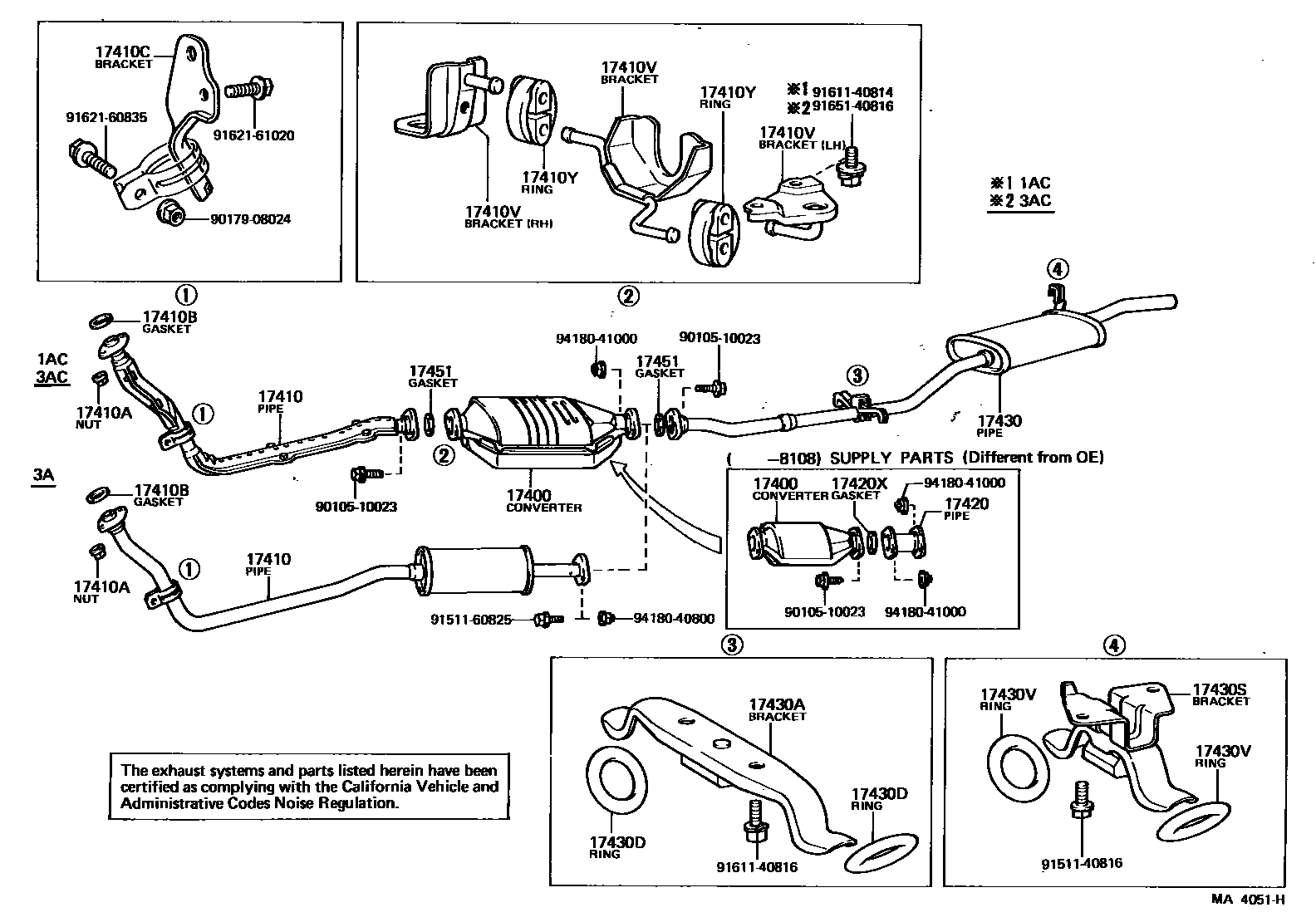

Toyota TERCEL — EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
CALIFORNIA SPEC
SUPPLY PARTS
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
CALIFORNIA SPEC
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
CALIFORNIA SPEC
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
CTR
LH SIDE
RH SIDE
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17420PIPE ASSY, EXHAUST, CENTER
SUPPLY PARTS
17420XGASKET, EXHAUST PIPE, CENTER
SUPPLY PARTS
17430PIPE ASSY, EXHAUST, TAIL
COLD SPEC
COLD SPEC
COLD SPEC
CALIFORNIA SPEC
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
RR,CALIFORNIA SPEC
FR,CALIFORNIA SPEC
RR
9010510023
main90105-10023
9017908024
main90179-08024
9151140816
main91511-40816
9151160825
main91511-60825
9161140814
main91611-40814
9161140816
main91611-40816
9162160835
main91621-60835
9162161020
main91621-61020
9165140816
main91651-40816
9418040800
main94180-40800
9418041000
main94180-41000
26 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota TERCEL
This section contains 29 genuine Toyota parts for the EXHAUST PIPE system of the Toyota TERCEL. Key components include: CONVERTER ASSY, W/CATALYST, FLANGE, THERMOSENSER INLET, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE.
