Toyota TERCEL — EXHAUST GAS RECIRCULATION SYSTEM

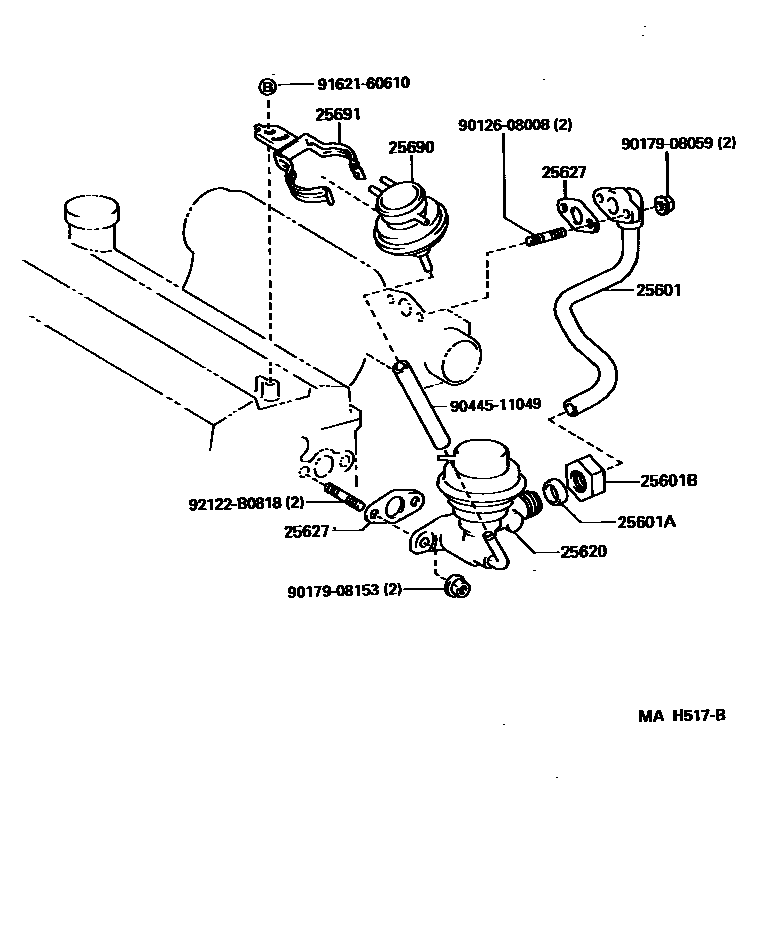

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25611-11050i199409

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14005i199409

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22076i199409

25620VALVE ASSY, EGR

main25620-11140i199409

main25620-11150i199409

25627GASKET, EGR VALVE

main25627-11030i199409

25690MODULATOR ASSY, EGR VACUUM

main25870-11090i199409

main25870-11100i199409

25691BRACKET, EGR VACUUM MODULATOR

main25691-11060i199409

9012608008

main90126-08008

9017908059

main90179-08059

9017908153

main90179-08153

9044511049

main90445-11049

9162160610

main91621-60610

92122B0818

main92122-B0818

13 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota TERCEL

This section contains 13 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota TERCEL. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
