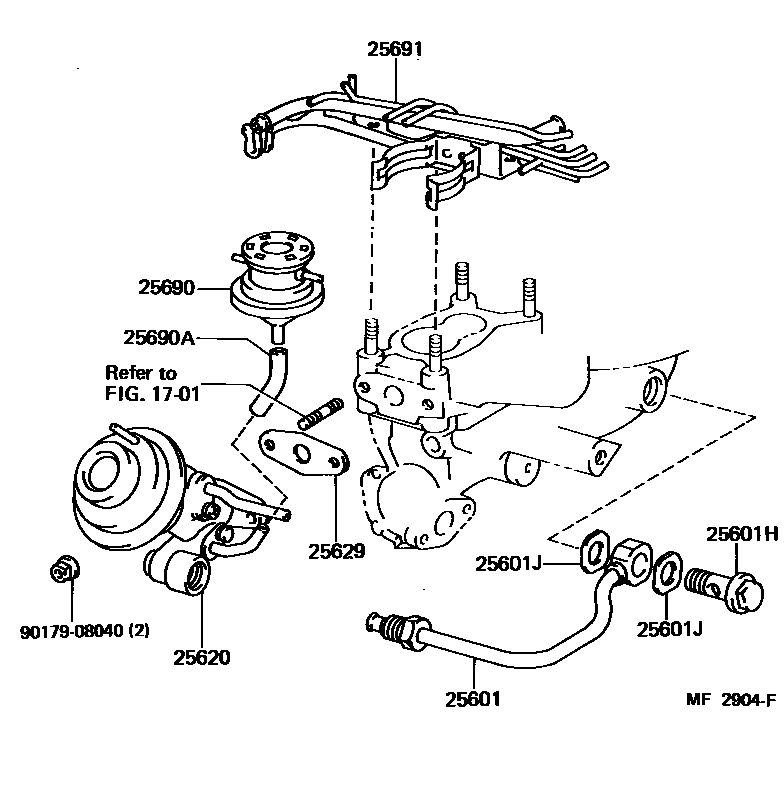

Toyota TERCEL — EXHAUST GAS RECIRCULATION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-15020i198208-198801

25601HBOLT, UNION(FOR EGR PIPE,NO.1)

main90401-20003i198208-198801

25601JGASKET(FOR EGR PIPE, NO.1)

main90430-20005i198208-198801

25620VALVE ASSY, EGR

main25620-15040i198208-198801

main25620-15050i198208-198608

main25620-15090i198208-198708

main25620-15210i198208-198708

CALIFORNIA SPEC

main25620-15210i198402-198801

25629GASKET, EGR VALVE ADAPTER

main25629-15011i198208-198801

25690MODULATOR ASSY, EGR VACUUM

main25690-15020i198408-198608

main25690-15020i198208-198801

CALIFORNIA SPEC

main25690-15030i198208-198801

main25690-15050i198208-198801

main25870-15110i198208-198708

main25870-15130i198208-198608

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11041i198208-198801

25691BRACKET, EGR VACUUM MODULATOR

main25691-15100i198208-198308

main25691-15110i198208-198708

main25691-16040i198308-198801

9017908040

main90179-08040

10 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota TERCEL

This section contains 10 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota TERCEL. Key components include: MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, BOLT, UNION(FOR EGR PIPE,NO.1), GASKET(FOR EGR PIPE, NO.1), VALVE ASSY, EGR.
