Toyota TERCEL — ENGINE OIL PUMP

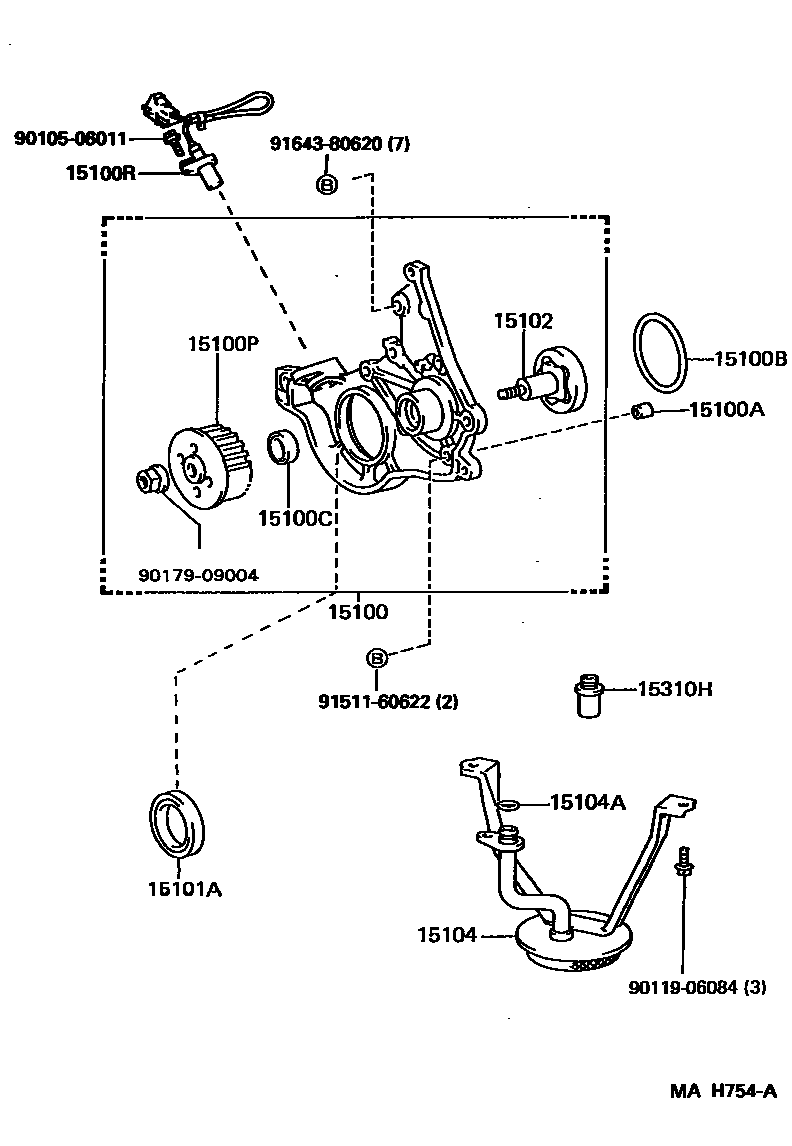

Parts diagram

15100PUMP ASSY, OIL

main15100-11110i199409

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i199409

15100BRING, O(FOR OIL PUMP)

main90301-62006i199409

15100CSEAL(FOR OIL PUMP)

main90029-21020i199409

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-11020i199409

15100RSENSOR, CRANK POSITION

main90919-05018i199409

15101ASEAL(FOR CRANKSHAFT)

main90311-35013i199409-199505

main90311-35035i199505-199604

main90311-35040i199604

15102ROTOR SET, OIL PUMP

main15102-11080i199409

15104STRAINER SUB-ASSY, OIL

main15104-11180i199409

15104ARING, O(FOR OIL STRAINER)

main96721-24015i199409

15310HREGULATOR ASSY, OIL

main15310-10010i199409

9010506011

main90105-06011

9011906084

main90119-06084

9017909004

main90179-09004

9151160622

main91511-60622

9164380620

main91643-80620

16 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota TERCEL

This section contains 16 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota TERCEL. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), PULLEY, OIL PUMP DRIVE SHAFT.
