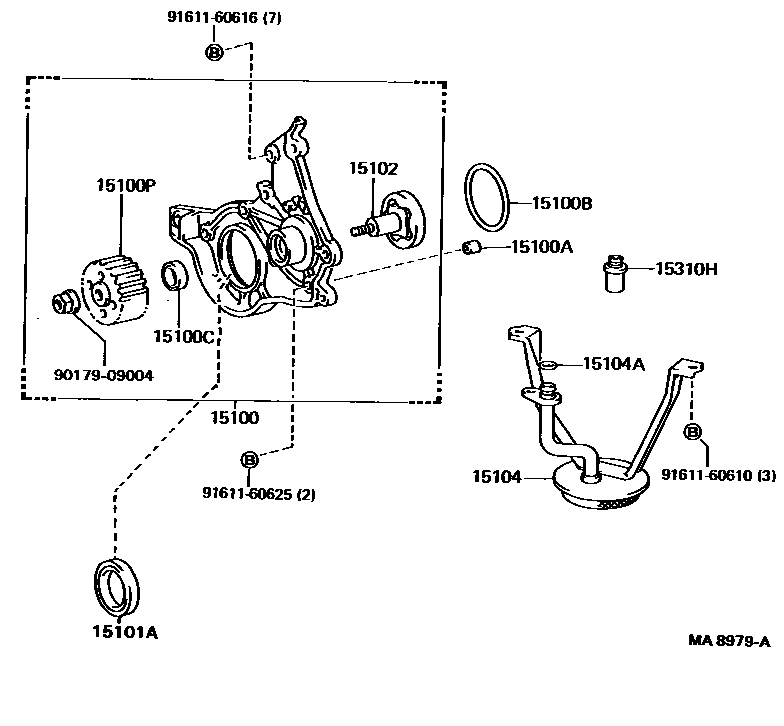

Toyota TERCEL — ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-11021i198608-198808

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i198608-198808

15100BRING, O(FOR OIL PUMP)

main96721-24063i198608-198808

15100CSEAL(FOR OIL PUMP)

main90029-21007i198608-198808

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-11010i198608-198808

15101ASEAL(FOR CRANKSHAFT)

main90311-35017i198608-198808

15102ROTOR SET, OIL PUMP

main15102-11011i198608-198808

15104STRAINER SUB-ASSY, OIL

main15104-11020i198608-198808

15104ARING, O(FOR OIL STRAINER)

main96721-24015i198608-198808

15310HREGULATOR ASSY, OIL

main15310-10010i198608-198808

9017909004

main90179-09004

9161160610

main91611-60610

9161160616

main91611-60616

9161160625

main91611-60625

14 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota TERCEL

This section contains 14 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota TERCEL. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), PULLEY, OIL PUMP DRIVE SHAFT.
