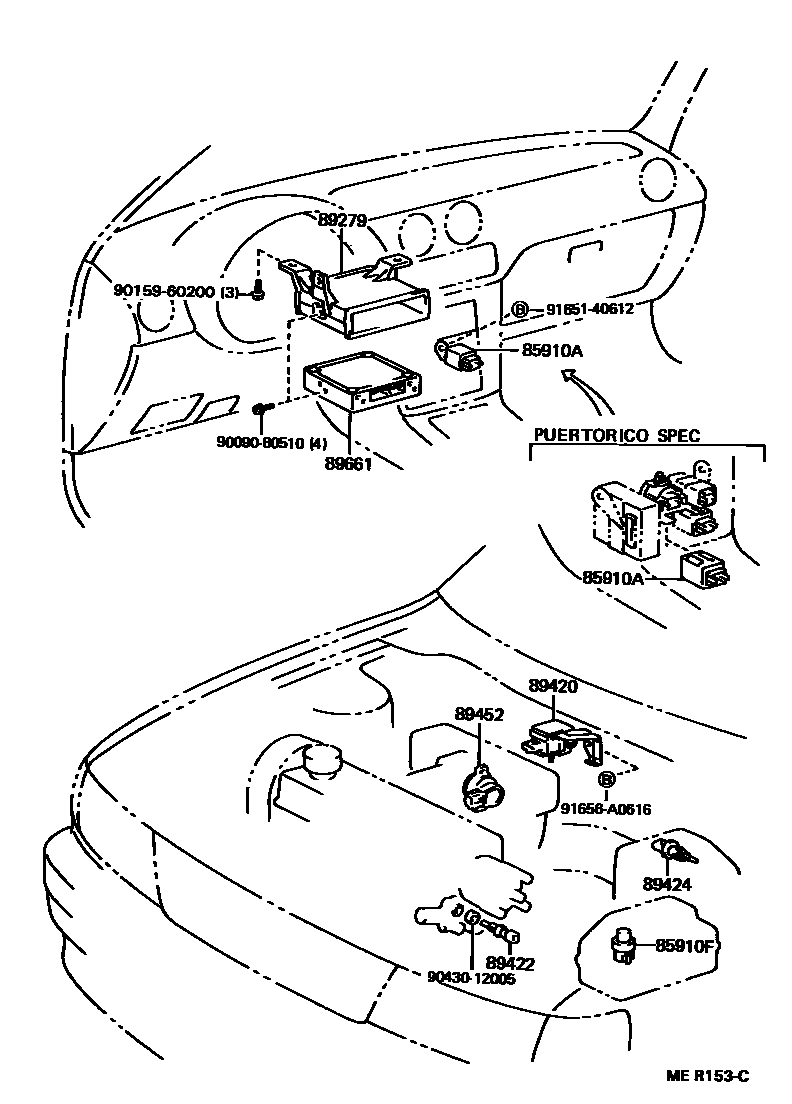

Toyota TERCEL — ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iEL42..USA199009-199208

PUERTORICO SPEC

main85910-16030iEL42199009-199208

main85910-16040iEL42199208-199402

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iEL42199009-199208

main90987-02009iEL42199208-199409

89279COVER, ENGINE CONTROL COMPUTER

main89279-16080iEL42199009-199208

main89279-16100iEL42199208-199409

89420SENSOR ASSY, VACUUM

main89420-16030iEL42199009-199409

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iEL42199009-199409

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL42199009-199409

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iEL42199208-199409

main89452-22090iEL42199009-199208

89661COMPUTER, ENGINE CONTROL

main89661-16080iEL42..USA199009-199104

CALIFORNIA SPEC

main89661-16081iEL42..USA199104-199308

CALIFORNIA SPEC

main89661-16082iEL42..USA199308-199409

CALIFORNIA SPEC

main89661-16090iEL42199009-199104

main89661-16091iEL42199104-199308

main89661-16092iEL42199308-199409

9009080510

main90090-80510

9015960200

main90159-60200

9043012005

main90430-12005

9165140612

main91651-40612

91656A0616

main91656-A0616

13 parts on this diagram · 1 diagram in section
