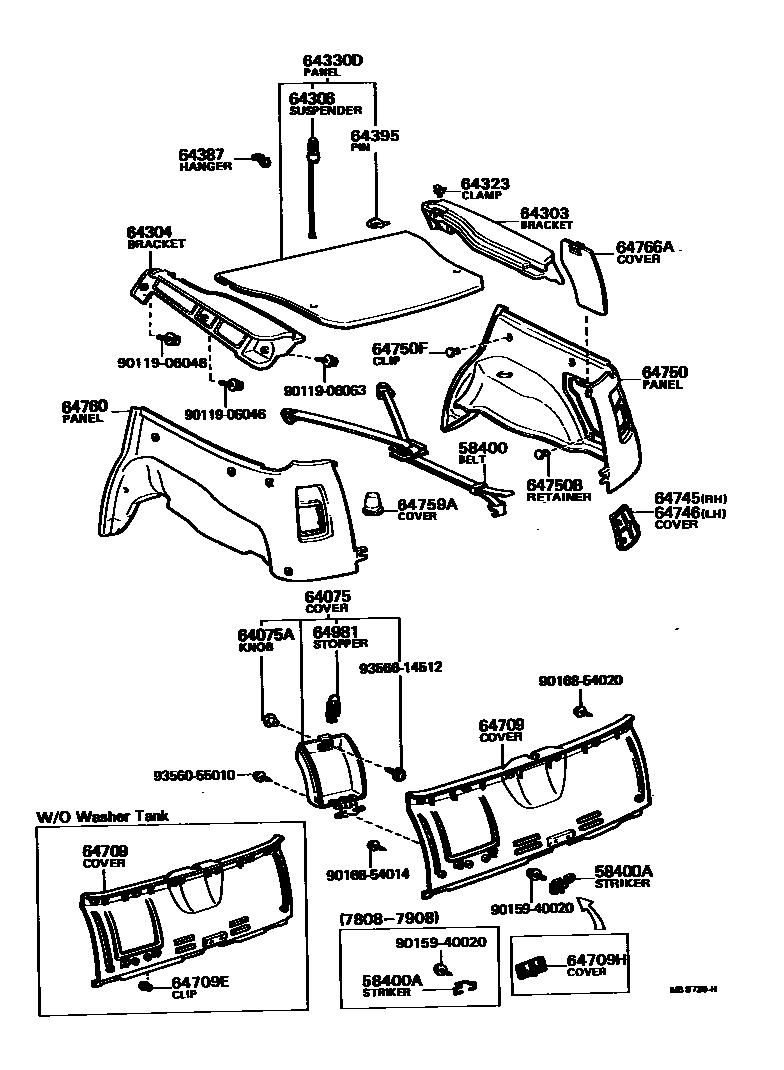

Toyota TERCEL — DECK BOARD & DECK TRIM COVER
58400BELT ASSY, LUGGAGE HOLD, NO.1
58400ASTRIKER, LUGGAGE HOLD BELT
64075COVER SUB-ASSY, DECK TRIM WASHER
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64075AKNOB, DECK TRIM WASHER COVER
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64387HANGER, PACKAGE TRAY TRIM
64395PIN, PACKAGE TRAY TRIM HINGE
64709COVER SUB-ASSY, LOWER BACK PANEL
W/RR WIPER,BLACK,BLACK
W/RR WIPER,BLUE,BLUE
W/RR WIPER,LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
W/RR WIPER,BLACK,BLACK
W/RR WIPER,BLUE,BLUE
W/RR WIPER,LIGHT BROWN,BROWN
W/RR WIPER,LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64709ECLIP, LOWER BACK PANEL COVER
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64709HCOVER, DECK TRIM
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64745COVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64746COVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64750PANEL ASSY, DECK SIDE TRIM, RH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64750FCLIP(FOR DECK SIDE TRIM PANEL)
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64759ACOVER, SHOCK ABSORBER HEAD
BLUE,BLUE
BLACK,BLACK
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64760PANEL ASSY, DECK SIDE TRIM, LH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64766ACOVER, DECK SIDE TRIM TOOL
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
64981STOPPER, WASHER TANK COVER
9011906046
main90119-06046
9011906063
main90119-06063
9015940020
main90159-40020
9016854014
main90168-54014
9016854020
main90168-54020
9356055010
main93560-55010
9356614512
main93566-14512
30 parts on this diagram · 1 diagram in section
DECK BOARD & DECK TRIM COVER for Toyota TERCEL
This section contains 30 genuine Toyota parts for the DECK BOARD & DECK TRIM COVER system of the Toyota TERCEL. Key components include: BELT ASSY, LUGGAGE HOLD, NO.1, STRIKER, LUGGAGE HOLD BELT, COVER SUB-ASSY, DECK TRIM WASHER, KNOB, DECK TRIM WASHER COVER, BRACKET SUB-ASSY, PACKAGE TRAY, RH.
