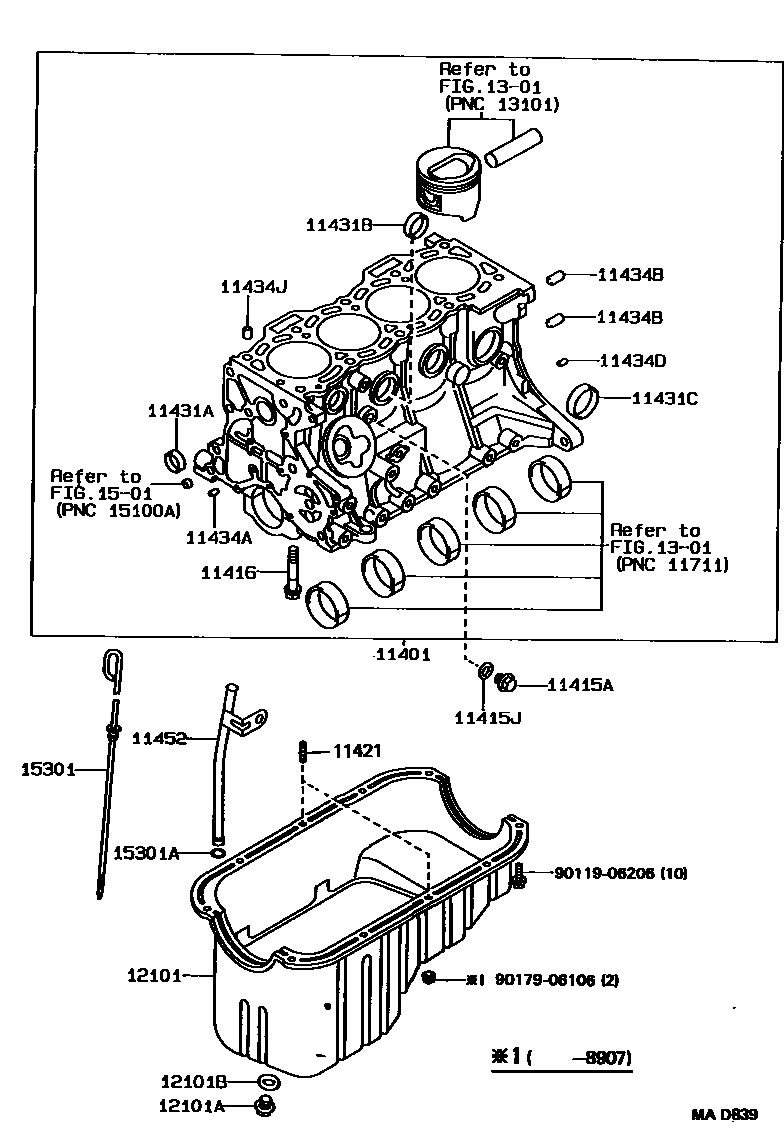

Toyota TERCEL — CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19375i198808-198911

main11401-19376i198911-198912

main11401-19377i198912-199009

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012i198808-199009

11415JGASKET(FOR DRAIN COCK)

main90430-13002i198808-199009

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i198808-199009

11421BOLT, STUD(FOR OIL PAN)

main90116-06014×2i198808-198907

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500×2i198808-199009

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×6i198808-199009

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500i198808-199009

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06068i198808-199009

L=11,OD=6

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i198808-199009

L=20,OD=10

main90253-15003i198808-199009

L=17,OD=15

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i198808-199009

L=11,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001×2i198808-199009

11452GUIDE, OIL LEVEL GAGE

main11452-10010i198808-199009

12101PAN SUB-ASSY, OIL

main12101-11030i198808-199009

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i198808-199009

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i198808-199007

main90430-12027i199007-199009

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11010i198808-198809

main15301-11020i198809-198905

main15301-11021i198908-199009

15301ARING, O(FOR OIL LEVEL GAGE)

main96711-19010i198808-199009

9011906206

main90119-06206

9017906106

main90179-06106

22 parts on this diagram · 1 diagram in section

CYLINDER BLOCK for Toyota TERCEL

This section contains 22 genuine Toyota parts for the CYLINDER BLOCK system of the Toyota TERCEL. Key components include: BLOCK SUB-ASSY, CYLINDER, PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK), GASKET(FOR DRAIN COCK), BOLT(FOR CRANKSHAFT BEARING CAP SET), BOLT, STUD(FOR OIL PAN).
