Toyota TERCEL — CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-16010i198808-198905

main83731-16020i198905-198908

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-16020i198808-198908

main84630-16021i198908-199009

88200BHOSE, CRUISE CONTROL VACUUM

main90447-04098i198808-198908

NO.2

main90999-92002i198808-198908

L=130,NO.1

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-16021i198908-199009

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-16010i198808-198908

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010i198808-198908

88240COMPUTER ASSY, CRUISE CONTROL

main88240-16020i198808-198908

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-16010i198808-198908

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-16020i198808-198908

9011906198

main90119-06198

9011906339

main90119-06339

9020505002

main90205-05002

9046400393

main90464-00393

9046712026

main90467-12026

9165140612

main91651-40612

9165640616

main91656-40616

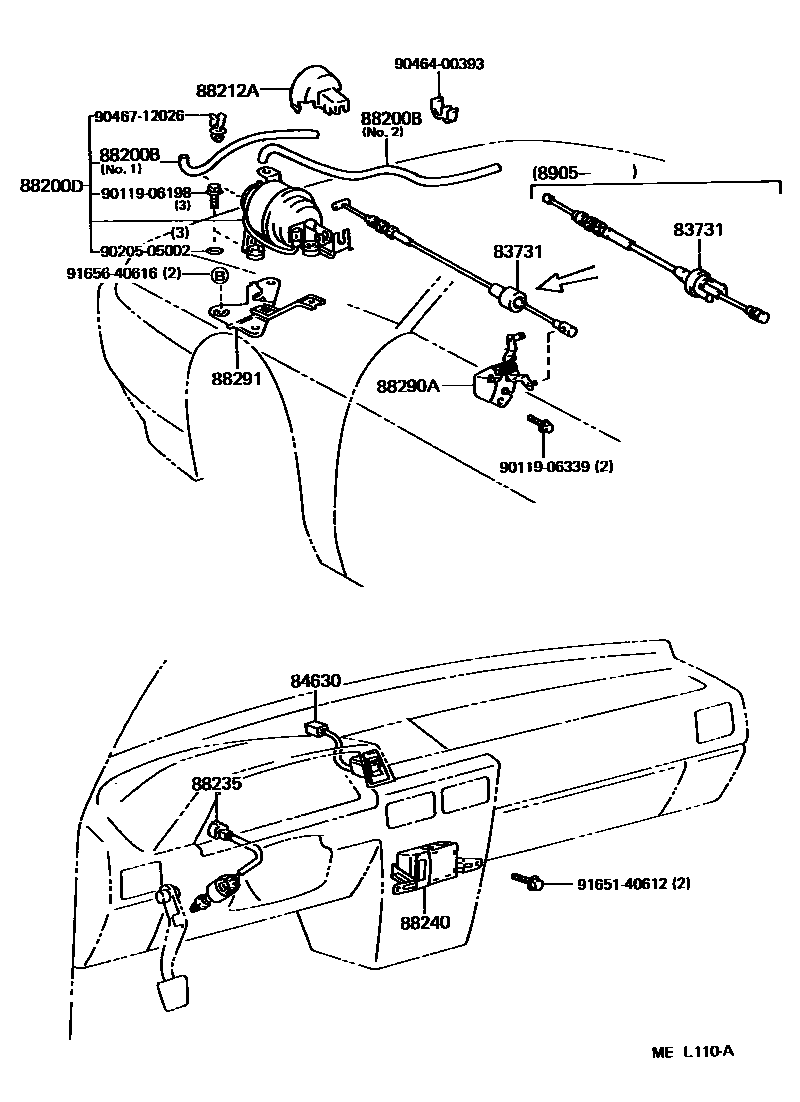

16 parts on this diagram · 1 diagram in section

CRUISE CONTROL (AUTO DRIVE) for Toyota TERCEL

This section contains 16 genuine Toyota parts for the CRUISE CONTROL (AUTO DRIVE) system of the Toyota TERCEL. Key components include: CABLE, CRUISE CONTROL, SWITCH ASSY, CRUISE CONTROL MAIN, HOSE, CRUISE CONTROL VACUUM, ACTUATOR ASSY, CRUISE CONTROL, COVER, CRUISE CONTROL ACTUATOR.
