Toyota TERCEL — COWL PANEL & WINDSHIELD GLASS

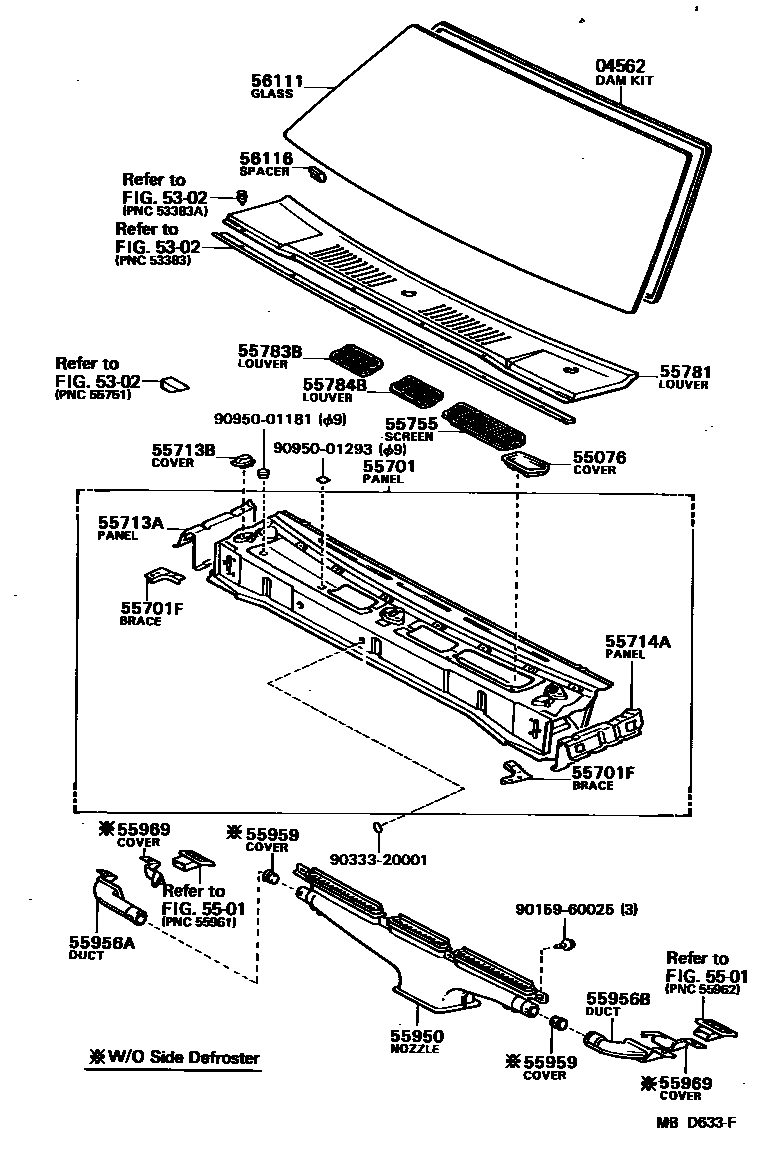

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-30030i198208-198308

main04562-30040i198308-198801

5302

5501

55076COVER, HEATER AIR DUCT HOLE

main55077-16040i198208-198308

55701PANEL SUB-ASSY, COWL

main55700-16040i198208-198801

main55700-16060i198502-198801

W/CRUISE CONTROL

55701FBRACE, COWL TOP TO APRON

main55715-16020i198208-198801

RH

main55716-16020i198208-198801

LH

55713APANEL, COWL TOP SIDE, RH

main55713-16020i198208-198801

55713BCOVER, COWL SIDE PANEL HOLE, RH

main55729-16010i198208-198801

55714APANEL, COWL TOP SIDE, LH

main55714-16020i198208-198801

55755SCREEN, HEATER AIR DUCT

main55076-16040i198608-198610

COLD SPEC

main55756-16030i198608-198610

55781LOUVER, COWL VENTILATOR

main55781-16020i198208-198801

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16010i198610-198801

main55783-16030i198608-198610

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55709-16030i198608-198610

COLD SPEC

main55784-16010i198208-198608

55950NOZZLE ASSY, DEFROSTER

main55950-16030i198208-198801

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-16010i198208-198801

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-16010i198208-198801

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2i198208-198608

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55959-16020i198208-198608

RH

main55969-16010i198208-198608

LH

56111GLASS, WINDSHIELD

main56111-16070i198208-198210

*LAM,T=4.7

main56111-16090i198208-198210

*LAM,T=5.3,*LAM,T=5.3

main56111-16100i198208-198801

*TL,T=5.3,*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-16020×2i198208-198306

main56116-16030×2i198306-198801

9015960025

main90159-60025

9033320001

main90333-20001

9095001181

main90950-01181

9095001293

main90950-01293

24 parts on this diagram · 1 diagram in section
