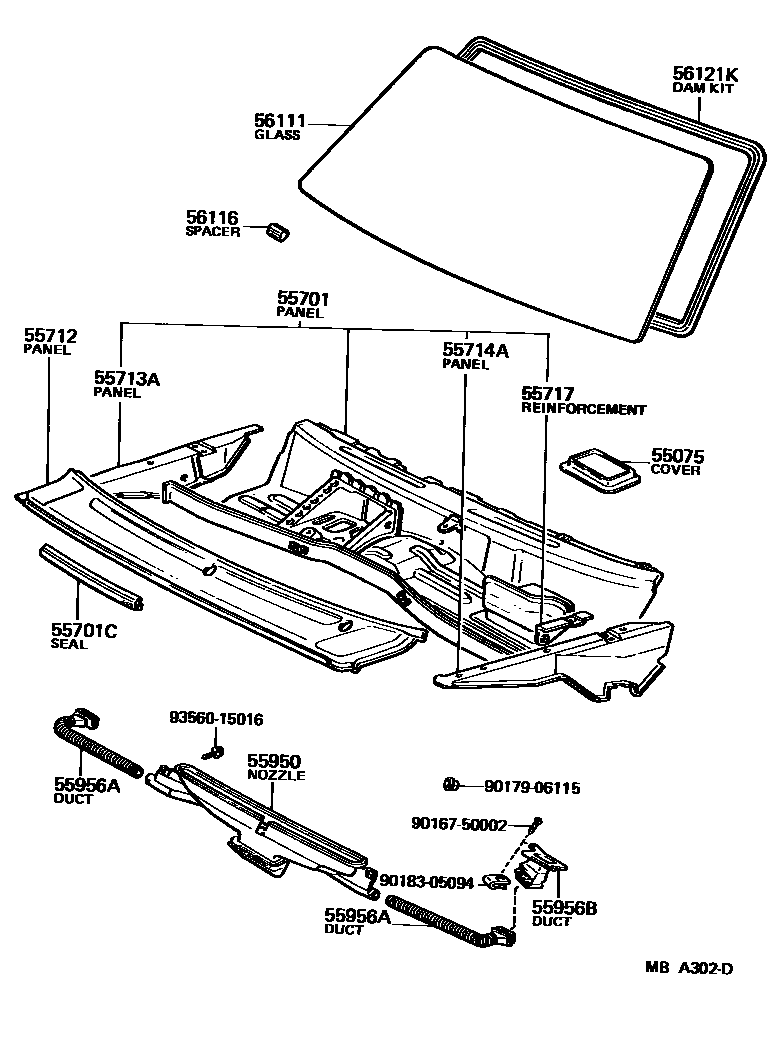

Toyota TERCEL — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-16010iAL1#..USA197908-198207

55701PANEL SUB-ASSY, COWL

main55700-16021iAL12198008-198207

main55700-16901iAL1#197908-198008

55701CSEAL, HOOD TO COWL TOP SIDE

main53389-16010iAL1#197908-198008

main53389-16020×2iAL12198008-198207

55712PANEL, COWL TOP OUTSIDE, FRONT

main55711-16020iAL1#197908-198008

main55711-16040iAL12198008-198207

55713APANEL, COWL TOP SIDE, RH

main55713-16010iAL1#197908-198207

55714APANEL, COWL TOP SIDE, LH

main55714-16010iAL1#197908-198207

55717REINFORCEMENT, COWL TOP OUTSIDE

main55723-16010iAL1#197908-198207

RH

main55724-16010iAL1#197908-198207

LH

55950NOZZLE ASSY, DEFROSTER

main55950-16010iAL1#197908-198207

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-16010iAL1#197908-198207

RH

main55971-16020iAL1#197908-198207

LH

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-16020iAL1#197908-198207

56111GLASS, WINDSHIELD

main56111-16030iAL1#..STD197908-198207

*LAM,T=5.3

main56111-16040iAL1#..DLX,SR5197908-198108

*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-16010×2iAL1#197908-198207

56121KDAM KIT, WINDSHIELD GLASS

main04562-30030iAL1#197908-198207

sub04562-30040

9016750002

main90167-50002

9017906115

main90179-06115

9018305094

main90183-05094

9356015016

main93560-15016

17 parts on this diagram · 2 diagrams in section
