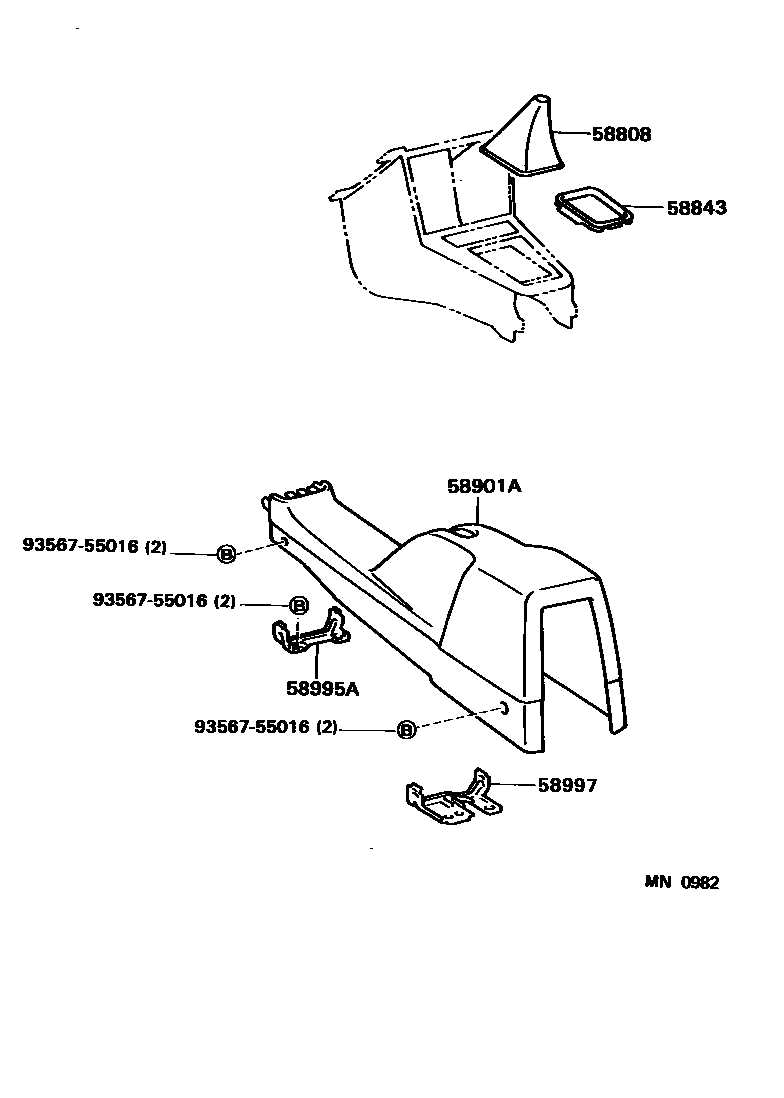

Toyota TERCEL — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16090-01iEL42..MTM199009-199208

BLACK,TRIM2#

main58808-16090-04iEL42..5F199009-199208

GRAYISH BLUE,TRIM8#

main58808-16090-22iEL42..5F..LE..CND;EL42..MTM..(DLX,STD)199208-199409

BLACK,TRIM2#

main58808-16090-W4iEL42..5F..DLX;EL42..5F..LE..CND199208-199409

EISEN BLUE,TRIM8#

58843BEZEL, SHIFTING HOLE

main58843-16030-01iEL42..3FC199009-199208

BLACK,TRIM2#

main58843-16030-04iEL42..3FC199009-199208

GRAYISH BLUE,TRIM8#

main58843-16030-22iEL42..3FC199208-199409

BLACK,TRIM2#

main58843-16030-W4iEL42..3FC199208-199409

EISEN BLUE,TRIM8#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16100-01iEL42..CND199009-199208

BLACK,TRIM2#

main58901-16100-04iEL42..(DLX,LE)..CND199009-199208

GRAYISH BLUE,TRIM8#

main58901-16100-22iEL42..CND199208-199409

BLACK,TRIM2#

main58901-16100-W4iEL42..(DLX,LE)..CND199208-199409

EISEN BLUE,TRIM8#

main58901-16120-01iEL42..USA199009-199208

BLACK,TRIM2#

main58901-16120-04iEL42..(DLX,LE)..USA199009-199208

GRAYISH BLUE,TRIM8#

main58901-16121-22iEL42..5F..DLX..USA;EL42..(3FC,4F)..USA199208-199409

BLACK,TRIM2#

main58901-16121-W4iEL42..3FC..USA;EL42..5F..DLX..USA199208-199409

EISEN BLUE,TRIM8#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16060iEL42199009-199208

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-16070iEL42..CND199009-199409

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section
