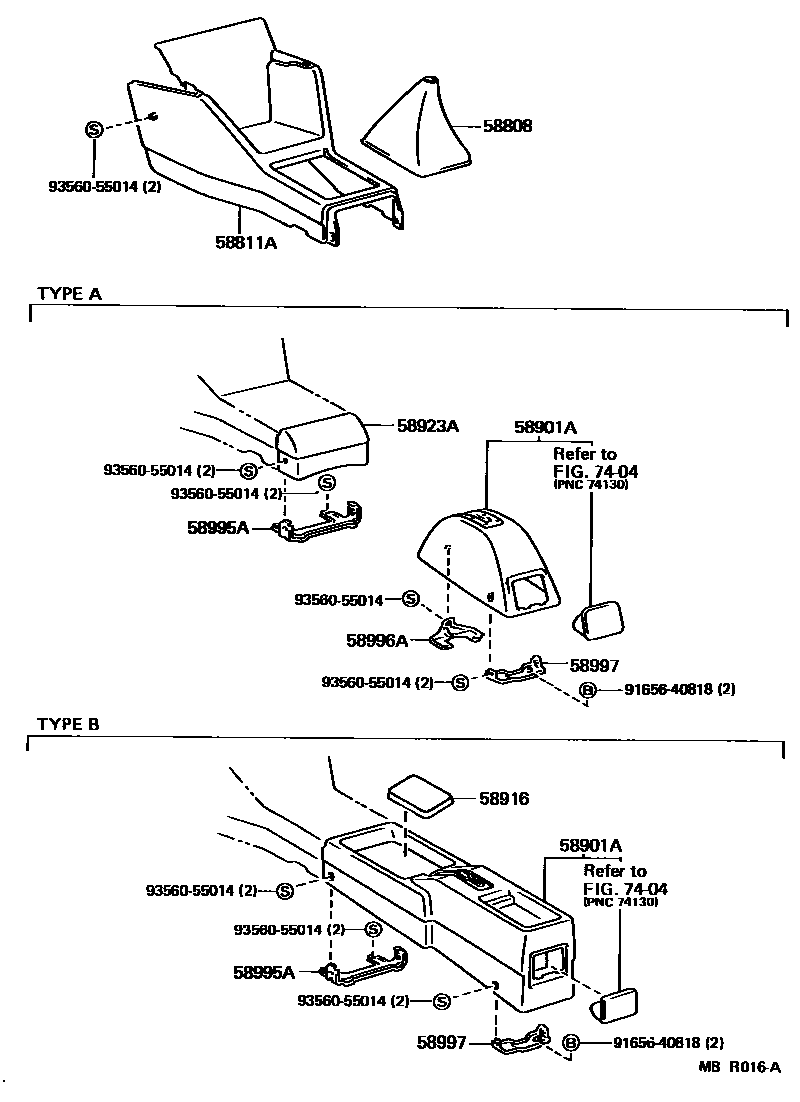

Toyota TERCEL — CONSOLE BOX & BRACKET
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
BLUE,TRIM8#
BROWN,TRIM4#
58811ABOX, CONSOLE, FRONT
BRACK,TRIM2#
COLD SPEC,BRACK,TRIM2#
BLUE,TRIM8#
COLD SPEC,BLUE,TRIM8#
BROWN,TRIM4#
COLD SPEC,BROWN,TRIM4#
BLACK,TRIM2#
BLUE,TRIM8#
BROWN,TRIM4#
58901ABOX SUB-ASSY, CONSOLE, REAR
W(REAR CONSOLE BOX),BLACK,TRIM2#
W(REAR CONSOLE BOX),BLUE,TRIM8#
W(REAR CONSOLE BOX),BROWN,TRIM4#
BLACK,TRIM2#
BLUE,TRIM8#
BROWN,TRIM4#
NEW BLACK,TRIM2#
BLUE,TRIM8#
BROWN,TRIM4#
58916MAT, BOX BOTTOM
NEW BLACK,TRIM2#
BLUE,TRIM8#
BROWN,TRIM4#
58923APANEL, CONSOLE REAR END
BLACK,TRIM2#
BLUE,TRIM8#
BROWN,TRIM4#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
W(REAR CONSOLE BOX)
7404ASH RECEPTACLE
9165640818
main91656-40818
9356055014
main93560-55014
11 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota TERCEL
This section contains 11 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota TERCEL. Key components include: COVER SUB-ASSY, SHIFTING HOLE, BOX, CONSOLE, FRONT, BOX SUB-ASSY, CONSOLE, REAR, MAT, BOX BOTTOM, PANEL, CONSOLE REAR END.
