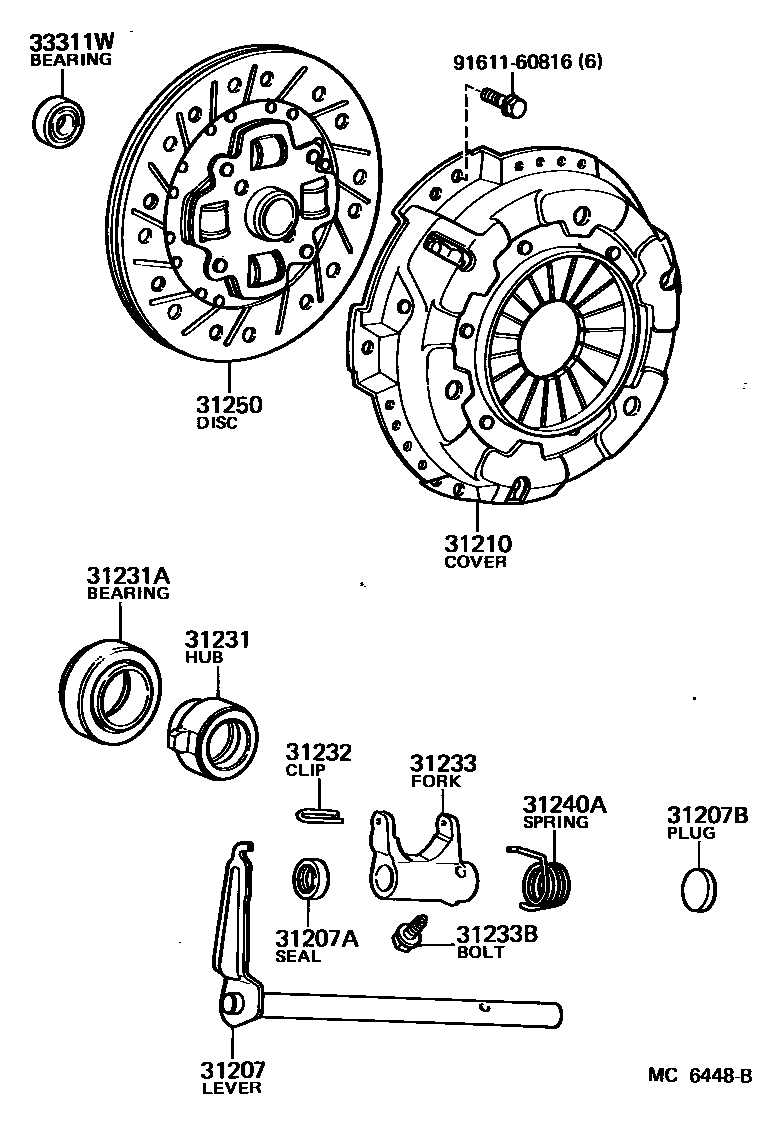

Toyota TERCEL — CLUTCH & RELEASE FORK

0001 1 0002 1

31207LEVER SUB-ASSY, CLUTCH RELEASE FORK

main31207-16020iAL1#..MTM197908-198204

main31207-16040iAL12..MTM198204-198207

31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)

main90313-18001iAL1#..MTM197908-198207

31207BPLUG(FOR CLUTCH RELEASE FORK LEVER)

main96411-12500iAL1#..MTM197908-198207

sub96411-42500

31210COVER ASSY, CLUTCH

main31210-12061iAL1#..MTM197908-197910

main31210-12062iAL1#..MTM197910-198108

main31210-12063iAL12..MTM198108-198205

sub31210-12064

31231HUB, CLUTCH RELEASE BEARING

main31231-16010iAL1#..MTM197908-198108

main31231-16020iAL12..MTM198108-198204

main31231-16030iAL12..MTM198204-198207

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40005iAL1#..MTM197908-198002

main90363-40013iAL12..MTM;AL10..MTM..USA198002-198009

main90363-40019iAL12..MTM198009-198101

main90363-40022iAL12..MTM198101-198207

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-16010×2iAL1#..MTM197908-198204

main31232-16020iAL12..MTM198204-198207

31233FORK, CLUTCH RELEASE

main31233-16010iAL1#..MTM197908-198203

main31233-16011iAL12..MTM198203-198207

31233BBOLT(FOR RELEASE FORK & RELEASE LEVER SETTING)

main90109-10026iAL1#..MTM197908-198207

sub90109-10079

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90508-32004iAL1#..MTM197908-198207

31250DISC ASSY, CLUTCH

main31250-16011iAL1#..MTM197908-198108

main31250-16012iAL12..MTM198108-198207

sub31250-16013

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAL12..MTM198010-198207

6001 VV C4

main97123-06001iAL1#..MTM197908-198010

6001 ZZ C3

9161160816

main91611-60816

13 parts on this diagram · 2 diagrams in section
