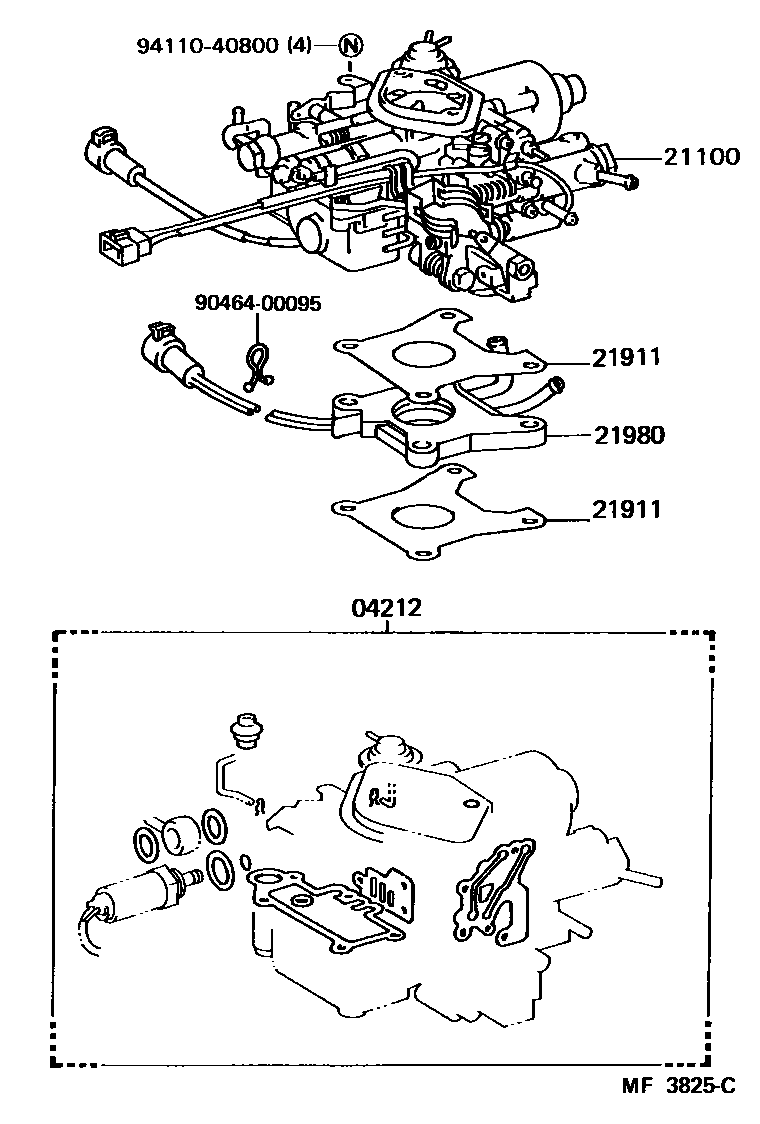

Toyota TERCEL — CARBURETOR ASSEMBLY

04212GASKET KIT, CARBURETOR

main04212-11040i198808-199009

21100CARBURETOR ASSY

main21100-11392i198808-198912

main21100-11393i198912-199009

main21100-11402i198808-198912

main21100-11403i198912-199009

main21100-11422i198808-198912

CALIFOLNIA SPEC

main21100-11423i198912-199009

CALIFOLNIA SPEC

21911GASKET, CARBURETOR

main21911-11020i198808-198912

UPPER

main21911-11021i198912-199009

UPPER

main21911-11030i198808-198912

LOWER

main21911-11031i198912-199009

LOWER

21980HEATER ASSY, COLD MIXTURE

main21980-11010i198808-199009

9046400095

main90464-00095

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota TERCEL

This section contains 6 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota TERCEL. Key components include: GASKET KIT, CARBURETOR, CARBURETOR ASSY, GASKET, CARBURETOR, HEATER ASSY, COLD MIXTURE.
