Toyota TERCEL — CARBURETOR ASSEMBLY

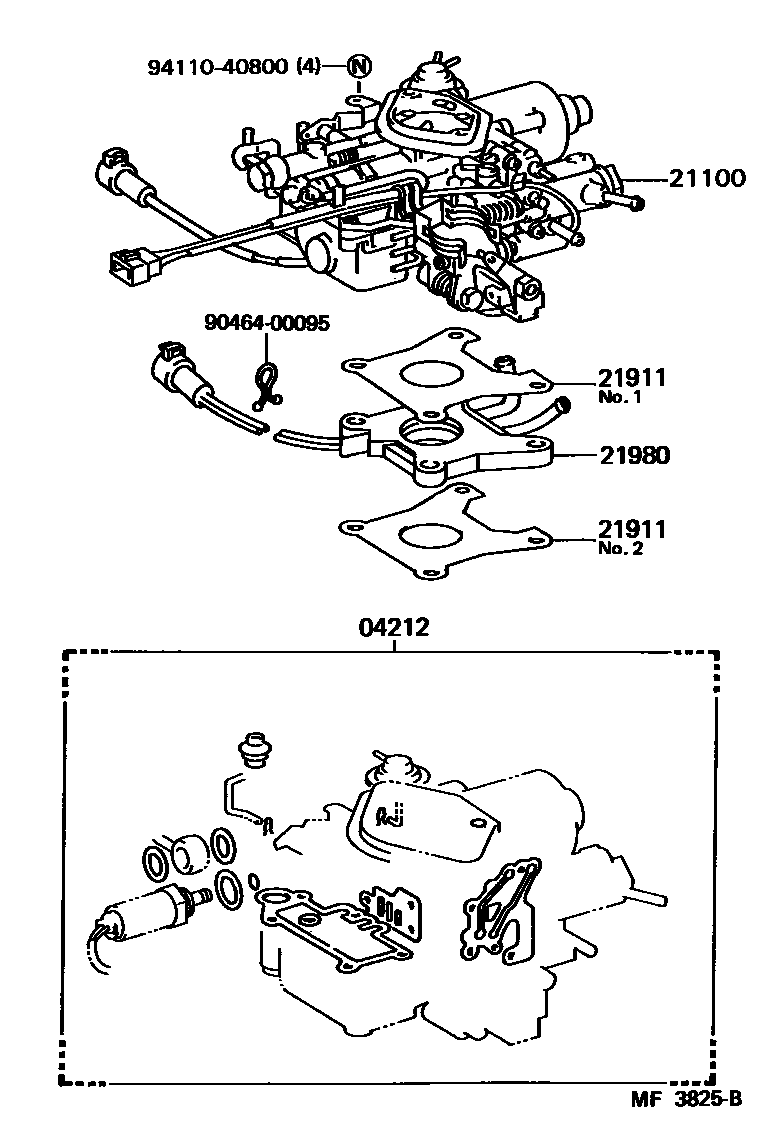

Parts diagram
04212GASKET KIT, CARBURETOR
main04212-11040i198608-198808
21100CARBURETOR ASSY
main21100-11370i198608-198708
main21100-11380i198608-198708
main21100-11390i198608-198708
main21100-11391i198708-198710
main21100-11392i198710-198808
main21100-11400i198608-198708
main21100-11401i198708-198710
main21100-11402i198710-198808
main21100-11420i198608-198708
CALIFORNIA SPEC
main21100-11421i198708-198710
CALIFORNIA SPEC
main21100-11422i198710-198808
CALIFORNIA SPEC
main21100-11430i198608-198708
CALIFORNIA SPEC
main21100-11431i198708-198710
CALIFORNIA SPEC
main21100-11432i198710-198808
CALIFORNIA SPEC
21911GASKET, CARBURETOR
main21911-11020i198608-198808
NO.1
main21911-11030i198608-198808
NO.2
21980HEATER ASSY, COLD MIXTURE
main21980-11010i198608-198808
9046400095
main90464-00095
9411040800
main94110-40800

6 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota TERCEL

This section contains 6 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota TERCEL. Key components include: GASKET KIT, CARBURETOR, CARBURETOR ASSY, GASKET, CARBURETOR, HEATER ASSY, COLD MIXTURE.
