Toyota TERCEL — CARBURETOR ASSEMBLY

04212GASKET KIT, CARBURETOR

main04212-15032i198208-198708

main04212-15040i198208-198608

21100CARBURETOR ASSY

main21100-15280i198208-198212

main21100-15281i198212-198308

main21100-15290i198208-198608

main21100-15300i198208-198708

main21100-15340i198308-198708

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15011i198208-198210

main21901-15012i198608-198708

main21901-15030i198708-198801

main21904-15020i198208-198210

21911GASKET, CARBURETOR

main21916-15030×2i198208-198801

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15030i198208-198801

21916GASKET, CARBURETOR, NO.2

main21911-15030i198208-198708

main21914-15020i198608-198708

21980HEATER ASSY, COLD MIXTURE

main21980-15020i198210-198608

9411040800

main94110-40800

8 parts on this diagram · 1 diagram in section

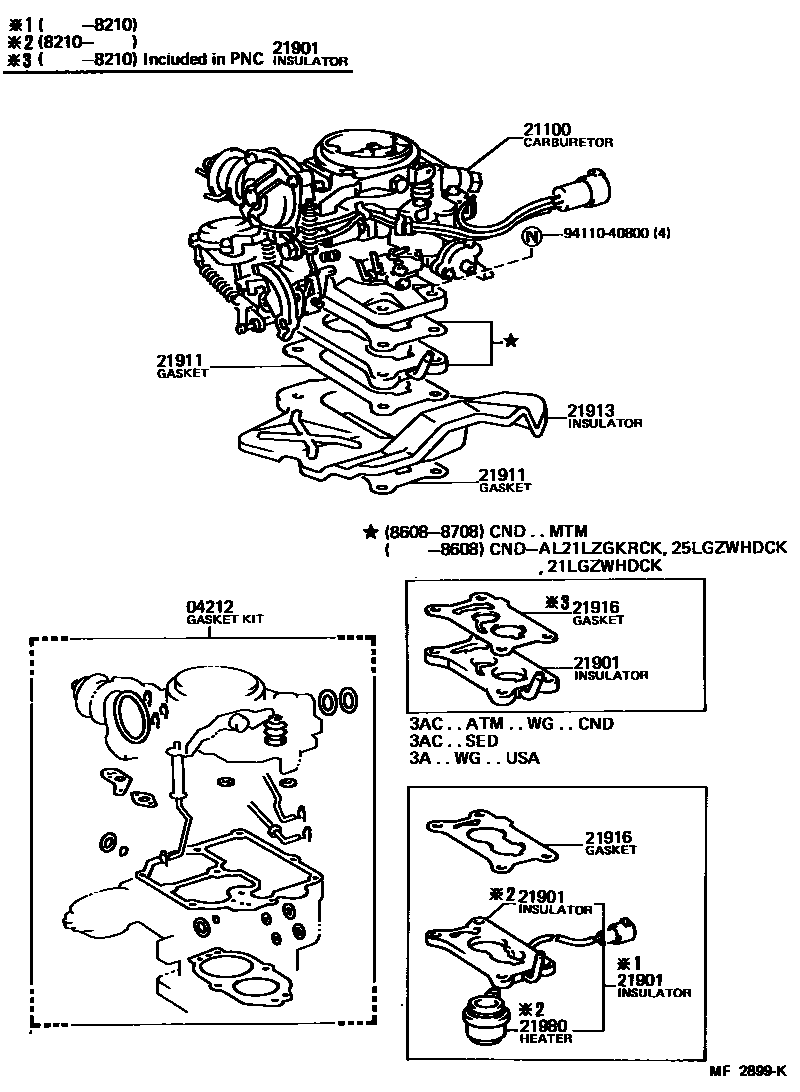

CARBURETOR ASSEMBLY for Toyota TERCEL

This section contains 8 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota TERCEL. Key components include: GASKET KIT, CARBURETOR, CARBURETOR ASSY, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1, GASKET, CARBURETOR, INSULATOR, CARBURETOR HEAT, NO.2.
