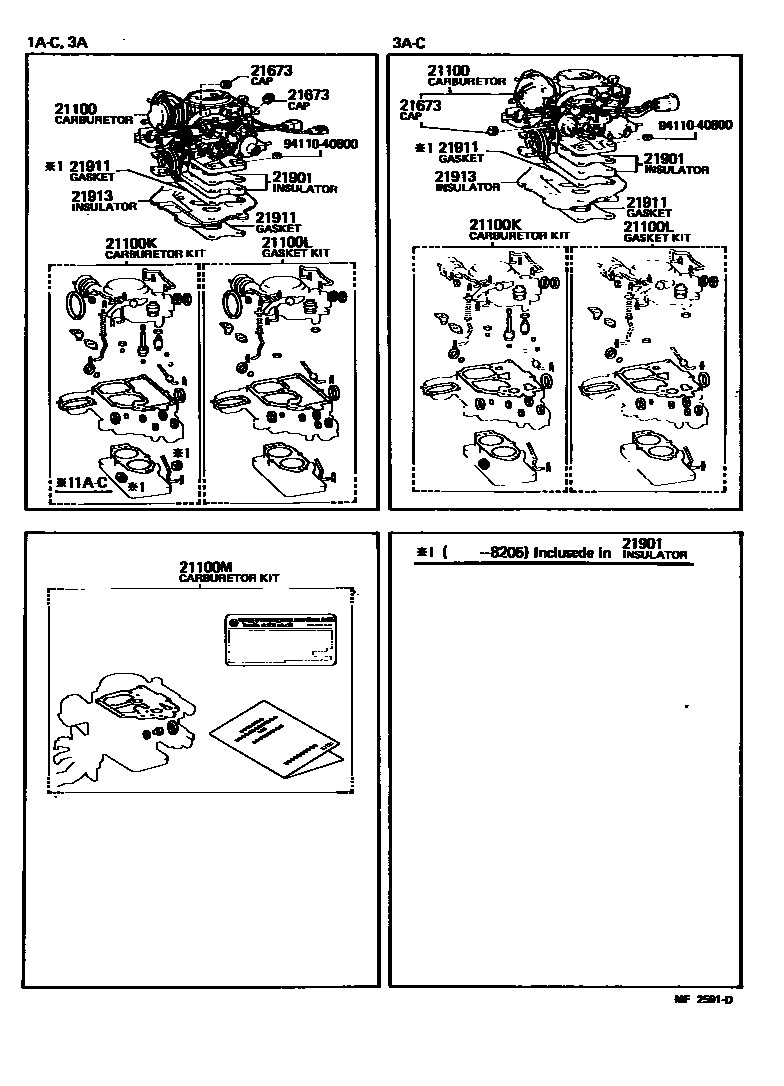

Toyota TERCEL — CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-15040i197908-198002

main21100-15050i198002-198004

main21100-15051i198004-198108

main21100-15052i198108-198207

main21100-15080i197908-198004

main21100-15081i198004-198008

main21100-15090i197908-198002

main21100-15100i198002-198004

main21100-15101i198004-198008

main21100-15120i197908-198004

CALIFORNIA SPEC

main21100-15121i198004-198008

CALIFORNIA SPEC

main21100-15130i197908-198004

HIGH ALTITUDE SPEC

main21100-15131i198004-198008

HIGH ALTITUDE SPEC

main21100-15140i197908-198002

HIGH ALTITUDE SPEC

main21100-15150i198002-198004

HIGH ALTITUDE SPEC

main21100-15151i198004-198008

HIGH ALTITUDE SPEC

main21100-15160i198008-198108

main21100-15170i198008-198108

main21100-15180i198008-198108

HIGH ALTITUDE SPEC

main21100-15182i198108-198207

main21100-15190i198008-198108

HIGH ALTITUDE SPEC

main21100-15192i198108-198207

main21100-15200i198008-198108

CALIFORNIA SPEC

main21100-15202i198108-198207

CALIFORNIA SPEC

21100KCARBURETOR KIT

main04211-15040i197908-198004

main04211-15041i198004-198108

main04211-15042i198108-198207

main04211-15050i197908-198004

main04211-15051i198004-198008

main04211-15060i198008-198108

main04211-15062i198108-198207

21100LGASKET KIT, CARBURETOR

main04212-15010i197908-198108

main04212-15021i197908-198004

main04212-15022i198004-198008

main04212-15030i198008-198108

main04212-15032i198108-198207

main04212-15040i198108-198207

21100MCARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATION

main04214-15010i198008-198207

main04214-15020i198008-198207

main04214-15030i198008-198207

CALIFORNIA SPEC

21673CAP, IDLE LIMIT

main21673-38020×2i197908-198108

*CAL&HA

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15010i197908-198205

21911GASKET, CARBURETOR

main21911-15010×2i197908-198206

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15010i197908-198207

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota TERCEL

This section contains 9 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota TERCEL. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATION, CAP, IDLE LIMIT.
