Toyota TERCEL — BODY STRIPE

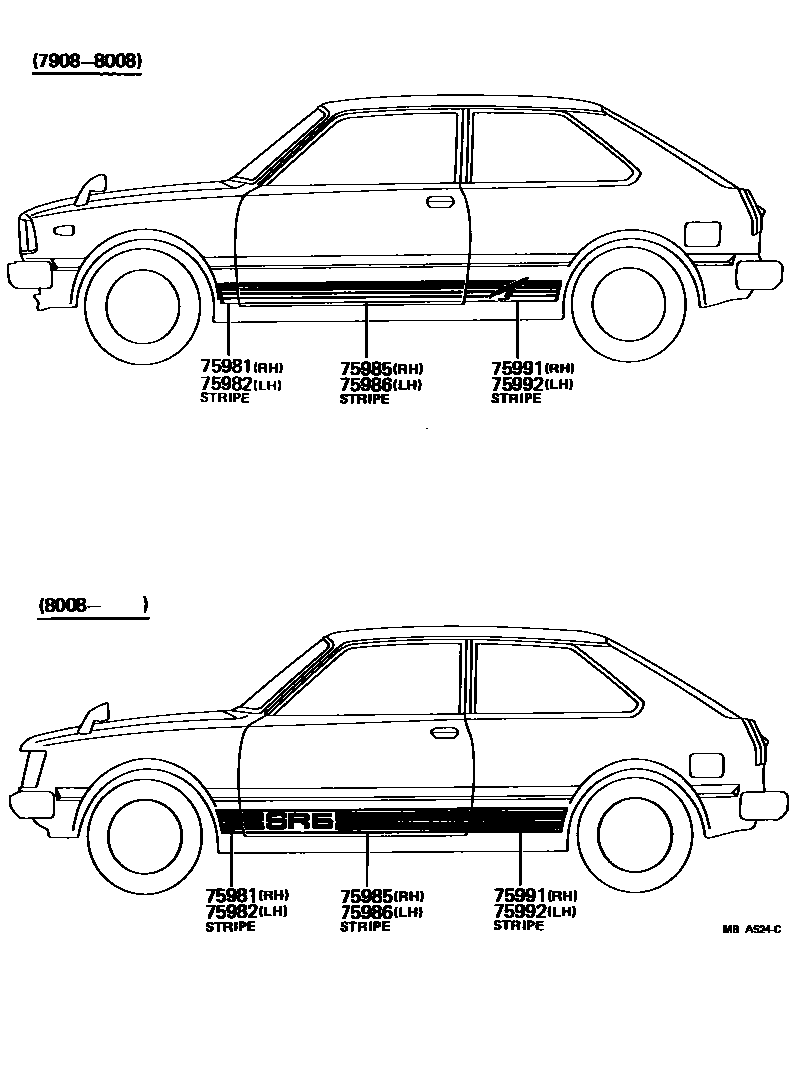

Parts diagram
75981STRIPE, FRONT FENDER, RH NO.1
main75981-16010i197908-198008
ORANGE
main75981-16031i198008-198108
GOLD
main75981-16060-01i198108-198207
TYPE A,BLACK
main75981-16060-03i198108-198207
TYPE B,GRAY
main75981-16900i197908-198008
BLACK
main75981-16902i197908-198008
BEIGE
75982STRIPE, FRONT FENDER, LH NO.1
main75982-16010i197908-198008
ORANGE
main75982-16031i198008-198108
GOLD
main75982-16050-01i198108-198207
TYPE A,BLACK
main75982-16050-03i198108-198207
TYPE B,GRAY
main75982-16900i197908-198008
BLACK
main75982-16902i197908-198008
BEIGE
75985STRIPE, FRONT DOOR, RH
main75985-16010i197908-198008
ORANGE
main75985-16070i198008-198108
GOLD
main75985-16071-01i198108-198207
TYPE A,BLACK
main75985-16071-03i198108-198207
TYPE B,GRAY
main75985-16900i197908-198008
BLACK
main75985-16902i197908-198008
BEIGE
75986STRIPE, FRONT DOOR, LH
main75986-16010i197908-198008
ORANGE
main75986-16070i198008-198108
GOLD
main75986-16071-01i198108-198207
TYPE A,BLACK
main75986-16071-03i198108-198207
TYPE B,GRAY
main75986-16900i197908-198008
BLACK
main75986-16902i197908-198008
BEIGE
75991STRIPE, QUARTER, RH NO.1
main75991-16010i197908-198008
ORANGE
main75991-16051i198008-198108
GOLD
main75991-16080-01i198108-198207
TYPE A,BLACK
main75991-16080-03i198108-198207
TYPE B,GRAY
main75991-16900i197908-198008
BLACK
main75991-16902i197908-198008
BEIGE
75992STRIPE, QUARTER, LH NO.1
main75992-16010i197908-198008
ORANGE
main75992-16041i198008-198108
GOLD
main75992-16070-01i198108-198207
TYPE A,BLACK
main75992-16070-03i198108-198207
TYPE B,GRAY
main75992-16900i197908-198008
BLACK
main75992-16902i197908-198008
BEIGE

6 parts on this diagram · 2 diagrams in section

BODY STRIPE for Toyota TERCEL

This section contains 6 genuine Toyota parts for the BODY STRIPE system of the Toyota TERCEL. Key components include: STRIPE, FRONT FENDER, RH NO.1, STRIPE, FRONT FENDER, LH NO.1, STRIPE, FRONT DOOR, RH, STRIPE, FRONT DOOR, LH, STRIPE, QUARTER, RH NO.1.
