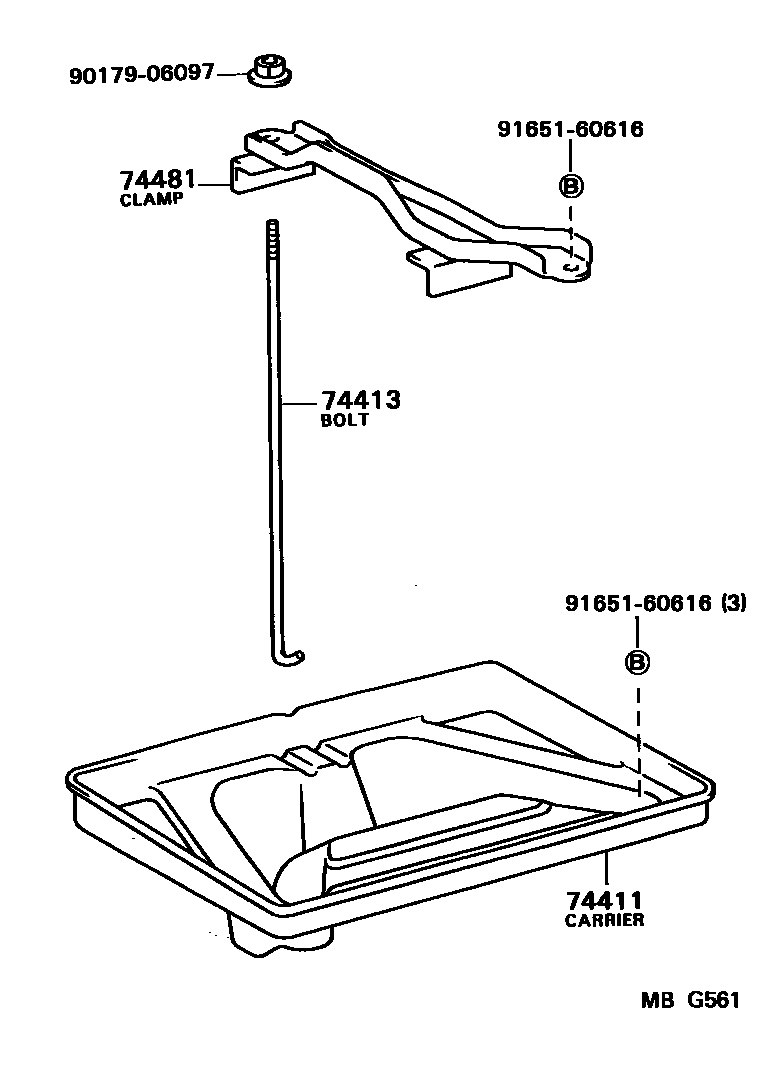

Toyota TERCEL — BATTERY CARRIER

74411CARRIER, BATTERY

main74431-16030i198208-198801

74413BOLT, BATTERY CLAMP

main74451-14010i198208-198301

main74451-16010i198301-198801

74481CLAMP, BATTERY HOLD DOWN

main74404-16040i198208-198801

32C24R(N40)

main74404-16050i198208-198801

50D20R,55D23R

9017906097

main90179-06097

9165160616

main91651-60616

5 parts on this diagram · 1 diagram in section

BATTERY CARRIER for Toyota TERCEL

This section contains 5 genuine Toyota parts for the BATTERY CARRIER system of the Toyota TERCEL. Key components include: CARRIER, BATTERY, BOLT, BATTERY CLAMP, CLAMP, BATTERY HOLD DOWN.
