Toyota TERCEL — BATTERY CARRIER

74411CARRIER, BATTERY

main74411-16010i197908-198008

N50,N50Z

main74411-16011i198008-198207

50D20R,55D23R

main74431-16010i197908-198207

N40

74413BOLT, BATTERY CLAMP

main74413-20030i197908-198207

N50,N50Z,50D20R,55D23R

main74451-14010i197908-198207

N40

74481CLAMP, BATTERY HOLD DOWN

main74404-14150i197908-198008

N50,N50Z

main74404-16010i197908-198207

N40

main74404-16020i198008-198207

50D20R,55D23R

9017906097

main90179-06097

9165160614

main91651-60614

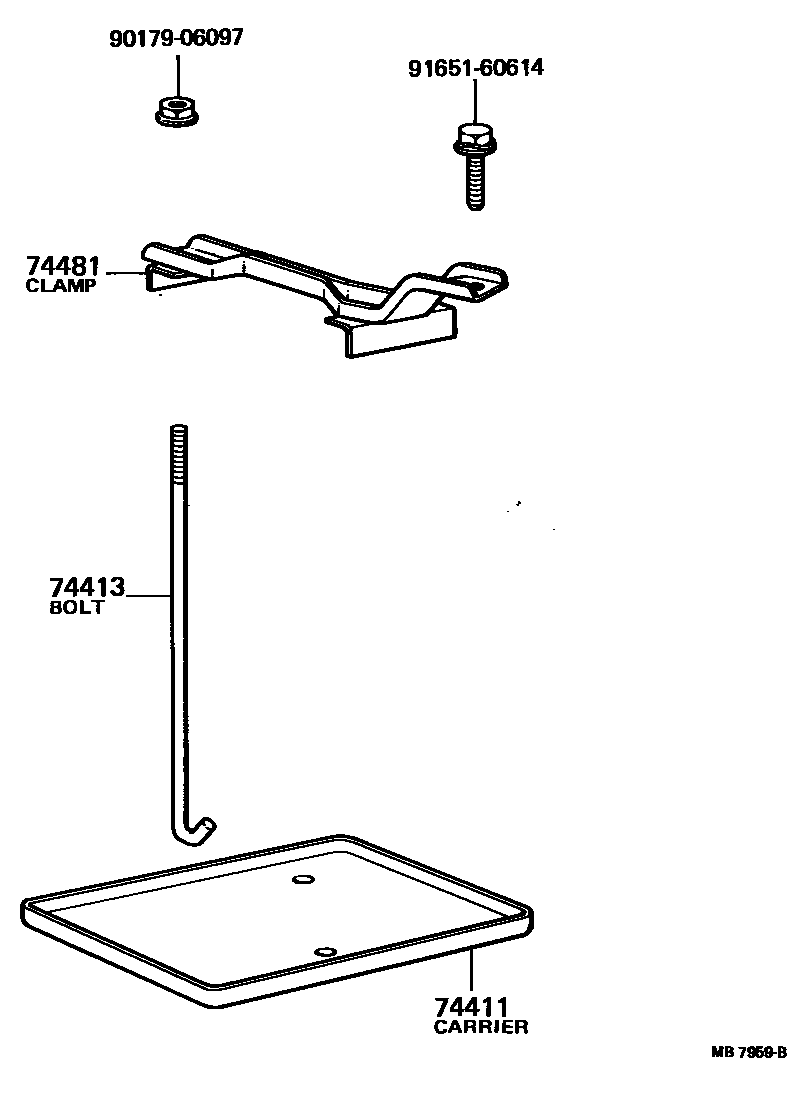

5 parts on this diagram · 1 diagram in section

BATTERY CARRIER for Toyota TERCEL

This section contains 5 genuine Toyota parts for the BATTERY CARRIER system of the Toyota TERCEL. Key components include: CARRIER, BATTERY, BOLT, BATTERY CLAMP, CLAMP, BATTERY HOLD DOWN.
