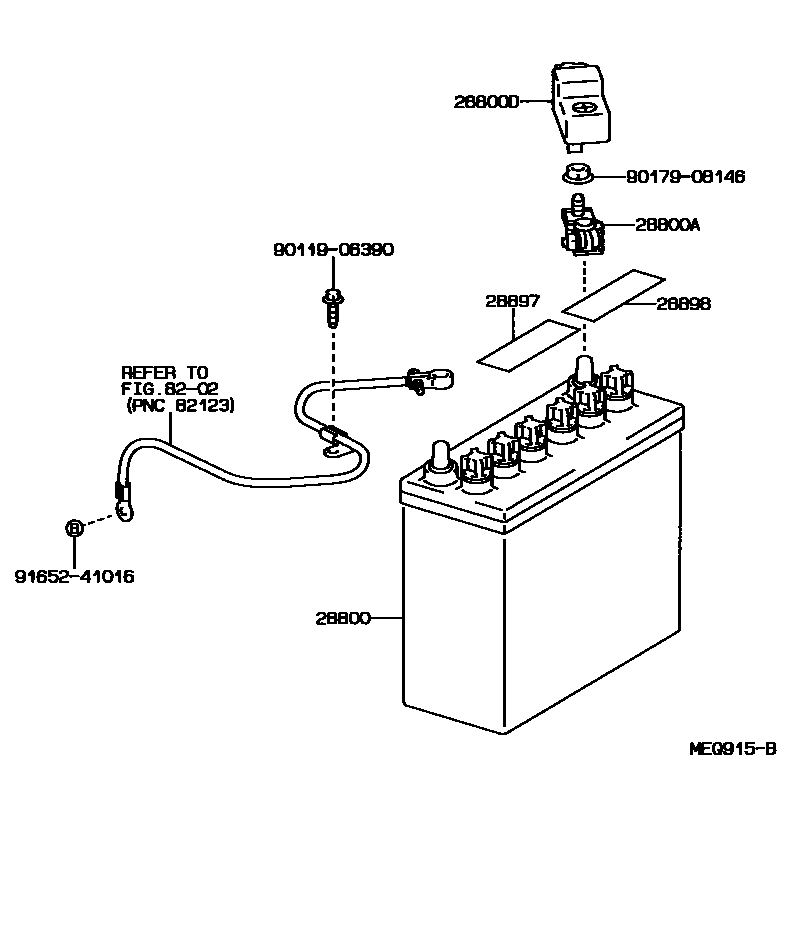

Toyota TERCEL — BATTERY & BATTERY CABLE

28800BATTERY

main28800-14030i199009-199409

50D20R

main28800-15010i199009-199208

55D23R

main28800-33101i199009-199409

32C24R

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i199009-199409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16050i199208-199409

28897PLATE, BATTERY CAUTION

main28897-26010i199009-199409

main28897-38010i199009-199409

28898PLATE, BATTERY

main28898-26010i199009-199409

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906390

main90119-06390

9017908146

main90179-08146

9165241016

main91652-41016

9 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 9 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), PLATE, BATTERY CAUTION, PLATE, BATTERY.
