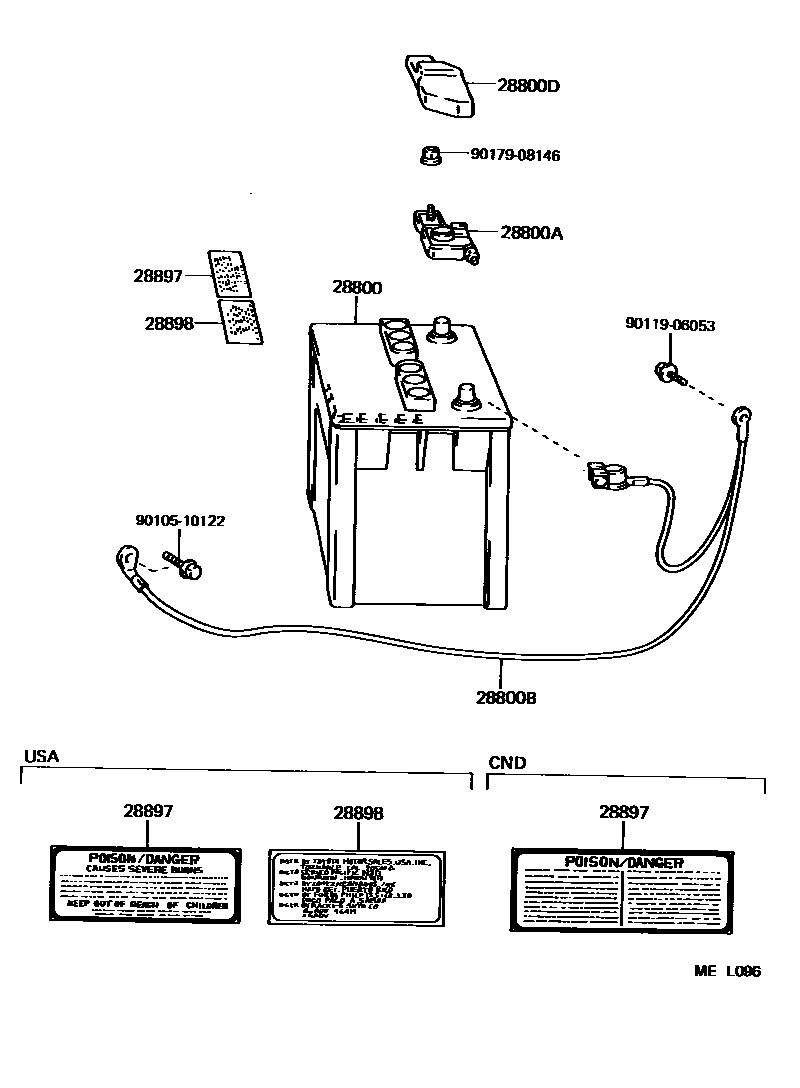

Toyota TERCEL — BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i198808-198810

55D23L

main28800-31031i198808-199008

32C24L,32C24L

main28800-42030i198810-199009

55D23L

main28800-64010i198810-198908

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05032i198808-199009

28800BCABLE, BATTERY TO GROUND

main82123-16060i198808-199009

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16020i198808-199009

28897PLATE, BATTERY CAUTION

main28897-26010i198808-199009

main28897-38010i198808-199009

28898PLATE, BATTERY

main28898-26010i198808-199009

9010510122

main90105-10122

9011906053

main90119-06053

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 9 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, COVER, CONNECTOR(FOR BATTERY TERMINAL), PLATE, BATTERY CAUTION.
