Toyota TERCEL — BATTERY & BATTERY CABLE

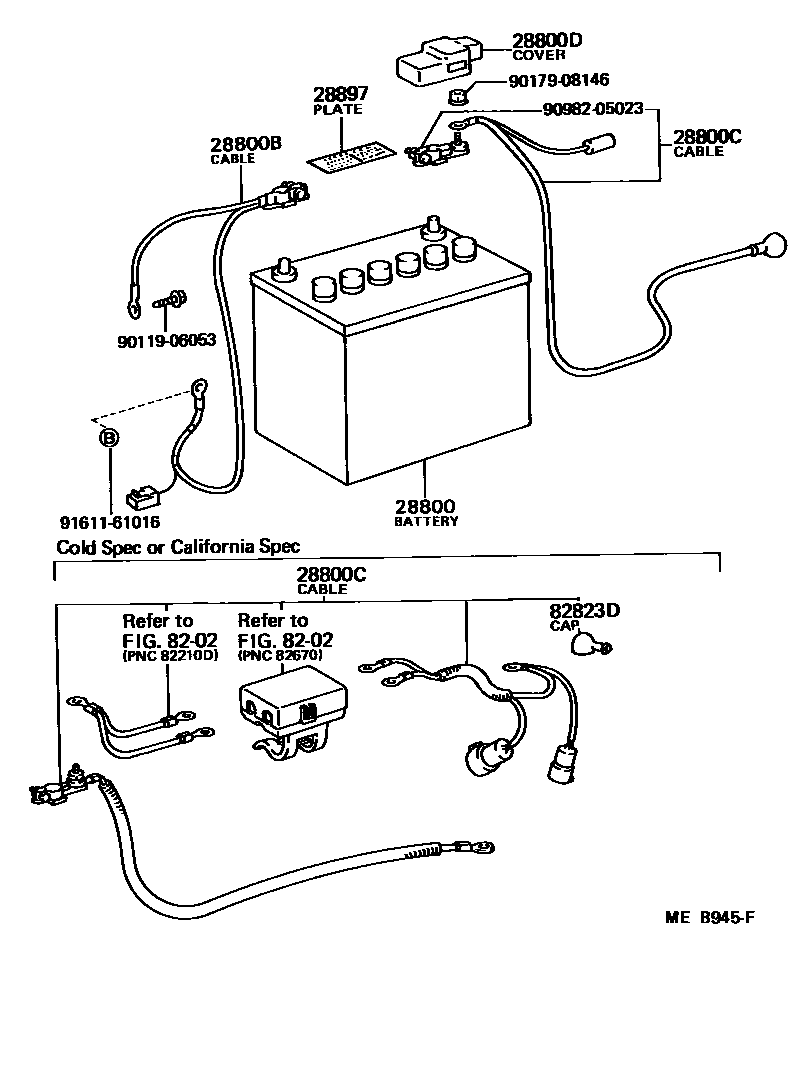

Parts diagram
28800BATTERY
main28800-14010i198208-198801
55D23R,55D23R
main28800-14030i198208-198801
50D20R,50D20R-MF
main28800-15010i198208-198801
55D23R,55D23R-MF
main28800-33071i198208-198801
32C24R,32C24R(N40)
28800BCABLE, BATTERY TO GROUND
main82123-16020i198208-198801
28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
main82122-16050i198208-198801
STARTER=12V 0.8KW
main82122-16060i198408-198801
main82122-16080i198408-198608
COLD SPEC OR CALIFORNIA SPEC
main82122-16081i198608-198609
COLD SPEC OR CALIFORNIA SPEC
main82122-16082i198609-198801
COLD SPEC OR CALIFORNIA SPEC
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
main82821-12150i198208-198801
28897PLATE, BATTERY CAUTION
main28897-26010i198208-198801
POISON/DANGER
main28897-38010i198208-198801
main28898-26010i198208-198801
DISTR.BY
8202WIRING & CLAMP
→ Go to FIG 82-02
82823DCAP, TERMINAL
main82823-22060i198608-198801
COLD SPEC OR CALIFORNIA SPEC
9011906053
main90119-06053
9017908146
main90179-08146
9098205023
main90982-05023
9161161016
main91611-61016

11 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 11 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH), COVER, CONNECTOR(FOR BATTERY TERMINAL), PLATE, BATTERY CAUTION.
