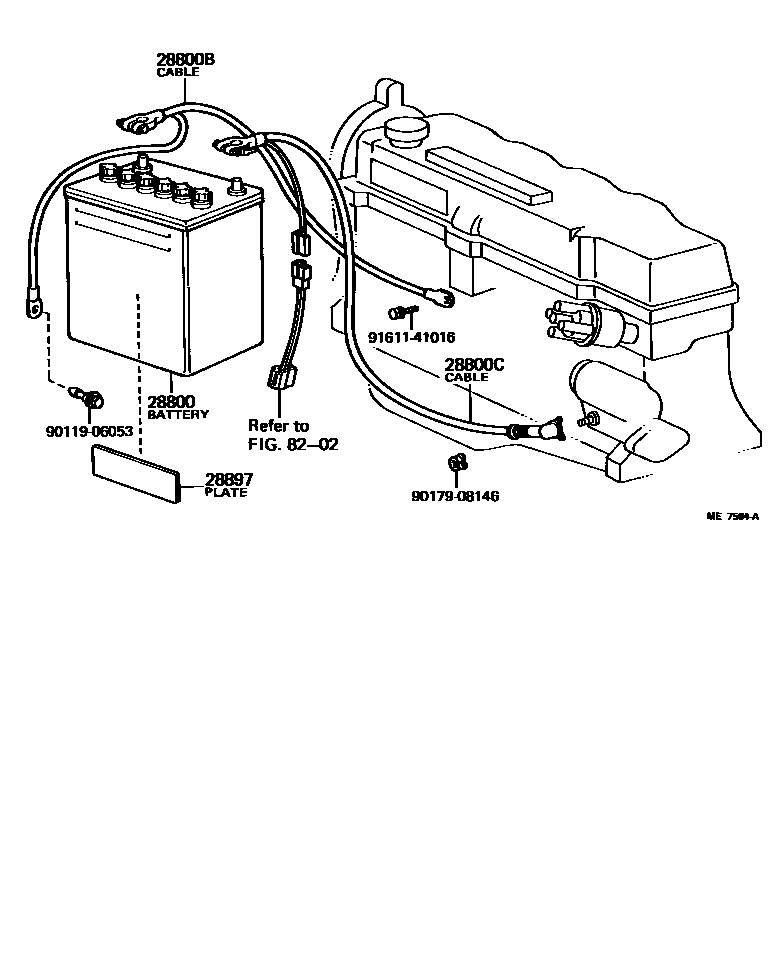

Toyota TERCEL — BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i198008-198207

55D23R,55D23R

main28800-14030i198008-198207

50D20R,50D20R

main28800-15010i198008-198207

55D23R,55D23R

main28800-33071i197908-198207

32C24R,N40

main28800-33111i197908-198008

55D26R,N50Z

main28800-34010i197908-198008

N50-S

28800BCABLE, BATTERY TO GROUND

main90982-02182i197908-198008

L=660

main90982-02214i198008-198207

L=660

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01327i197908-198207

STARTER=12V 0.9KW

main90982-01335i197908-198207

STARTER=12V 0.8KW

28897PLATE, BATTERY CAUTION

main28897-26010i197908-198008

N40

main28897-38010i197908-198207

N50Z

main28897-45010i197908-198008

N50-S,N50Z

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906053

main90119-06053

9017908146

main90179-08146

9161141016

main91611-41016

8 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH), PLATE, BATTERY CAUTION, WIRING & CLAMP.
