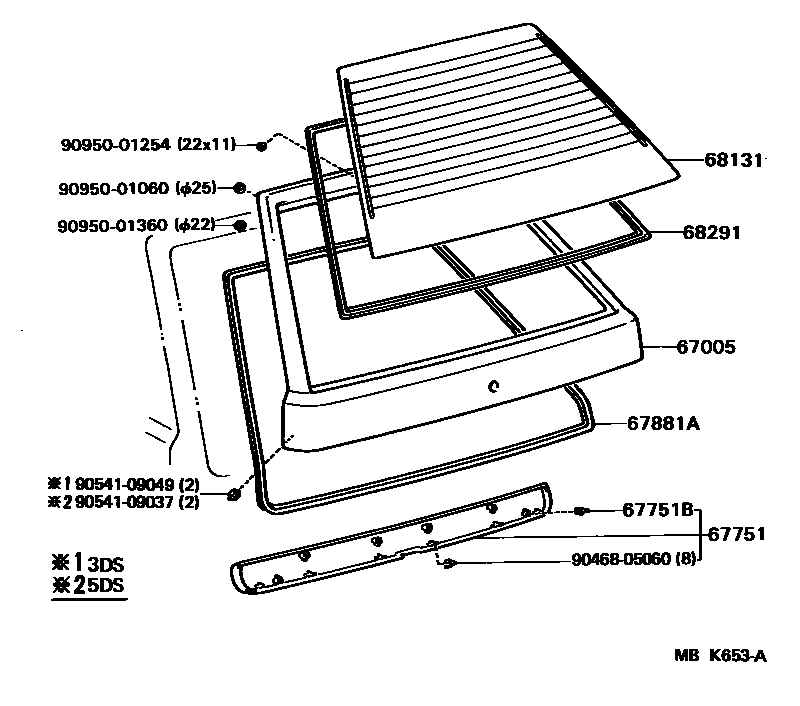

Toyota TERCEL — BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
W/RR WIPER
W/RR WIPER
67751BOARD, BACK DOOR TRIM
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
67751BRETAINER(FOR BACK DOOR TRIM BOARD)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*TEM,T=3.5,*TEM,T=3.5
*EHT=3.5,*EHT,T=3.5 (100W)
*EHT,T=3.5,*EHT,T=3.5(160W)
*EHTT,T=3.5,*EHTT,T=3.5(100W)
*EHTT,T=3.5,*EHTT,T=3.5(160W)
*EHTT,T=3.5,*EHTT,T=3.5(100W)
*EHTT,T=3.5,*EHTT,T=3.5(160W)
*EHT,T=3.5,*EHT,T=3.5(160W)
*TEM,T=3.5,*TEM,T=3.5
*EHT,T=3.5,*EHT,T=3.5(100W)
68291WEATHERSTRIP, BACK DOOR GLASS
9046805060
main90468-05060
9054109037
main90541-09037
9054109049
main90541-09049
9095001060
main90950-01060
9095001254
main90950-01254
9095001360
main90950-01360
12 parts on this diagram · 1 diagram in section
BACK DOOR PANEL & GLASS for Toyota TERCEL
This section contains 12 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota TERCEL. Key components include: PANEL SUB-ASSY, BACK DOOR, BOARD, BACK DOOR TRIM, RETAINER(FOR BACK DOOR TRIM BOARD), WEATHERSTRIP, BACK DOOR, GLASS, BACK DOOR.
