Toyota TERCEL — BACK DOOR PANEL & GLASS

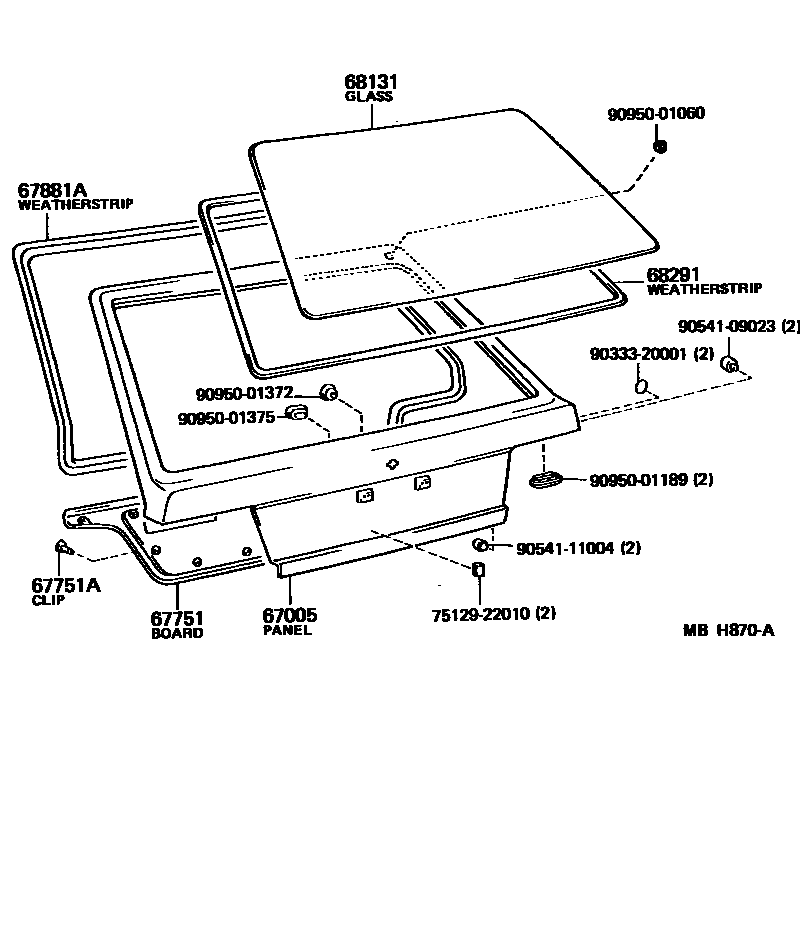

Parts diagram
67005PANEL SUB-ASSY, BACK DOOR
main67005-16050i198208-198408
W/O RR WIPER
main67005-16051i198408-198508
W/O RR WIPER
main67005-16052i198508-198608
W/O RR WIPER
main67005-16060i198208-198408
W/RR WIPER
main67005-16061i198408-198508
W/RR WIPER
main67005-16062i198508-198608
W/RR WIPER
main67005-16170i198208-198508
W/O RR WIPER
main67005-16171i198508-198801
W/O RR WIPER
main67005-16180i198208-198508
W/RR WIPER
main67005-16181i198508-198801
W/RR WIPER
67751BOARD, BACK DOOR TRIM
main67751-16010-02i198508-198608
DARK WINE,DARK WINE
main67751-16010-03i198508-198608
GRAY,GRAY
main67751-16010-05i198508-198605
BEIGE,BEIGE
main67751-16010-15i198605-198608
BEIGE,BEIGE
main67751-16020-02i198408-198508
DARK WINE,DARK WINE
main67751-16020-03i198208-198408
GRAY,GRAY
main67751-16020-05i198408-198508
BEIGE,BEIGE
main67751-16020-06i198208-198408
BROWN,BROWN
main67751-16020-13i198408-198508
GRAY,GRAY
main67751-16030-03i198208-198408
GRAY,GRAY
main67751-16030-05i198408-198508
BEIGE,BEIGE
main67751-16030-06i198208-198408
BROWN,BROWN
main67751-16030-13i198408-198508
GRAY,GRAY
main67751-16040-01i198608-198801
BLACK,BLACK
main67751-16040-03i198508-198608
GRAY,GRAY
main67751-16040-05i198508-198605
BEIGE,BEIGE
main67751-16040-15i198605-198801
BEIGE,DARK BEIGE
67751ACLIP(FOR BACK DOOR TRIM BOARD)
main90467-06017-02×13i198408-198608
DARK WINE,DARK WINE
main90467-06017-11×7i198608-198801
BLACK,BLACK
main90467-06017-13×7i198208-198408
GRAY,GRAY
main90467-06017-26×13i198208-198408
BROWN,BROWN
main90467-06017-45×13i198408-198605
BEIGE,BEIGE
main90467-06017-49×13i198605-198608
BEIGE,DARK BEIGE
main90467-06017-53×7i198408-198608
GRAY,GRAY
67881AWEATHERSTRIP, BACK DOOR
main67881-16040i198208-198801
68131GLASS, BACK DOOR
main68131-16100i198208-198608
*TT,T=3.5
main68131-16110i198208-198608
*TEM,T=3.5
main68131-16120i198208-198608
*EHT,T=3.5
main68131-16130i198208-198608
*EHTT,T=3.5
main68131-16140i198208-198608
*EHT,T=3.5,W/HEAVY DEFOGGER
main68131-16150i198208-198608
*EHTT,T=3.5,W/HEAVY DEFOGGER
main68131-16160i198208-198801
*TT,T=3.5,*TT,T=3.5
main68131-16180i198208-198608
*EHTT,T=3.5,W/HEAVY DEFOGGER
main68131-16190i198208-198801
*EHTT,T=3.5,*EHTT,T=3.5
main68131-16200i198208-198801
*EHTT,T=3.5,*EHTT,T=3.5,W/HEAVY DEFOGGER
68291WEATHERSTRIP, BACK DOOR GLASS
main68291-16010i198208-198608
main68291-16020i198208-198801
7512922010CUSHION, REAR LICENSE PLATE
main75129-22010
9033320001
main90333-20001
9054109023
main90541-09023
9054111004
main90541-11004
9095001060
main90950-01060
9095001189
main90950-01189
9095001372
main90950-01372
9095001375
main90950-01375

14 parts on this diagram · 2 diagrams in section

BACK DOOR PANEL & GLASS for Toyota TERCEL

This section contains 22 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota TERCEL. Key components include: PANEL SUB-ASSY, BACK DOOR, BOARD, BACK DOOR TRIM, CLIP(FOR BACK DOOR TRIM BOARD), RETAINER(FOR BACK DOOR TRIM BOARD), COVER, BACK DOOR.
