Toyota TERCEL — BACK DOOR PANEL & GLASS

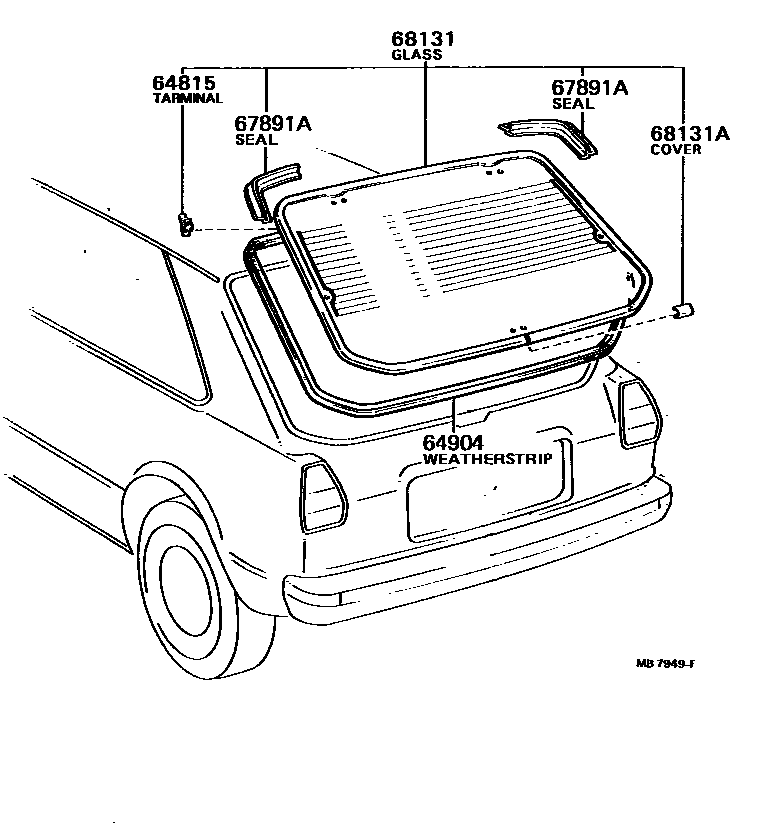

Parts diagram
64815TERMINAL, BACK WINDOW GLASS
main64815-14050×2i198106-198207
W/*DEF
64904WEATHERSTRIP SUB-ASSY, BACK DOOR
main67881-16010i197908-198207
67891ASEAL, BACK DOOR
main67891-16010×2i197908-198207
68131GLASS, BACK DOOR
main68105-16030i197908-198207
*EHTT,T=5.0,BLACK MOULDING
main68105-16040i197908-198207
*TT,T=5.0,BLACK MOULDING
main68105-16050i197908-198207
*EHT,T=5.0,*DEF=180W
main68105-16070i197908-198207
*EHTT,T=5.0,*DEF=180W,BLACK
main68105-16080i197908-198108
*TEM,T=5.0
main68105-16090i197908-198108
*EHT,T=5.0,*DEF=100W
68131ACOVER, BACK DOOR MOULDING JOINT
main75823-16020i197908-198207

5 parts on this diagram · 1 diagram in section

BACK DOOR PANEL & GLASS for Toyota TERCEL

This section contains 5 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota TERCEL. Key components include: TERMINAL, BACK WINDOW GLASS, WEATHERSTRIP SUB-ASSY, BACK DOOR, SEAL, BACK DOOR, GLASS, BACK DOOR, COVER, BACK DOOR MOULDING JOINT.
