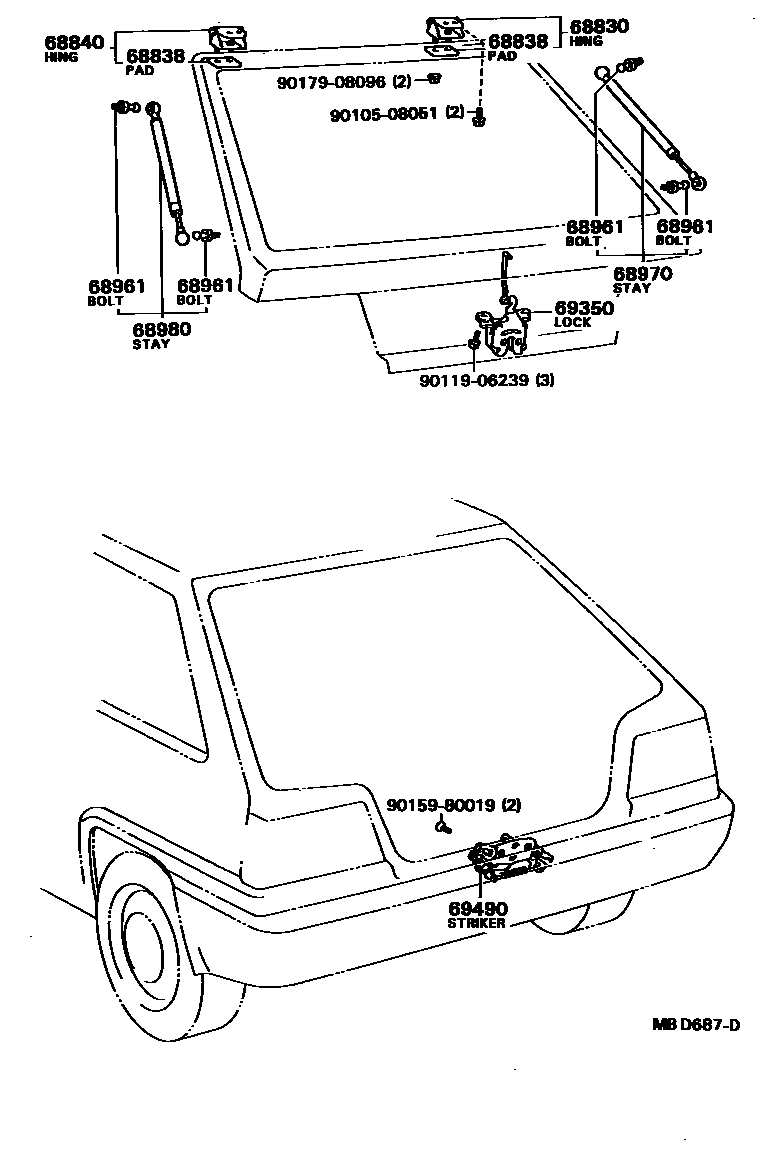

Toyota TERCEL — BACK DOOR LOCK & HANDLE

0001 1 0002 1

68830HINGE ASSY, BACK DOOR, RH

main68801-16010iAL2#198208-198801

sub68801-16011

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2iAL2#198208-198801

sub68838-14022

68840HINGE ASSY, BACK DOOR, LH

main68801-16010iAL2#198208-198801

sub68801-16011

68961BOLT, BACK DOOR STAY

main68961-16010×4iAL2#198208-198801

68970STAY ASSY, BACK DOOR, RH

main68950-19295iAL21..SED198208-198608

W/RR WIPER,KAYABA

main68950-19305iAL21..SED198208-198608

W/RR WIPER,TOKIKO

main68950-19315iAL21..SED198208-198608

W/O RR WIPER,KAYABA

main68950-19325iAL21..SED198208-198608

W/O RR WIPER,TOKIKO

main68950-19335iAL2#..WG198208-198801

KAYABA

main68950-19345iAL2#..WG198208-198801

TOKIKO

68980STAY ASSY, BACK DOOR

main68950-19295iAL21..SED198208-198608

W/RR WIPER,KAYABA

main68950-19305iAL21..SED198208-198608

W/RR WIPER,TOKIKO

main68950-19315iAL21..SED198208-198608

W/O RR WIPER,KAYABA

main68950-19325iAL21..SED198208-198608

W/O RR WIPER, TOKIKO

main68950-19335iAL2#..WG198208-198801

KAYABA

main68950-19345iAL2#..WG198208-198801

TOKIKO

69350LOCK ASSY, BACK DOOR

main69350-16020iAL21..SED198208-198608

main69350-16040iAL2#..WG198208-198310

main69350-16060iAL2#..WG198310-198801

69490STRIKER ASSY, BACK DOOR LOCK

main69430-16030iAL21..SED198208-198608

main69430-16060iAL2#..WG198208-198801

9010508051

main90105-08051

9011906239

main90119-06239

9015980019

main90159-80019

9017908096

main90179-08096

12 parts on this diagram · 2 diagrams in section
