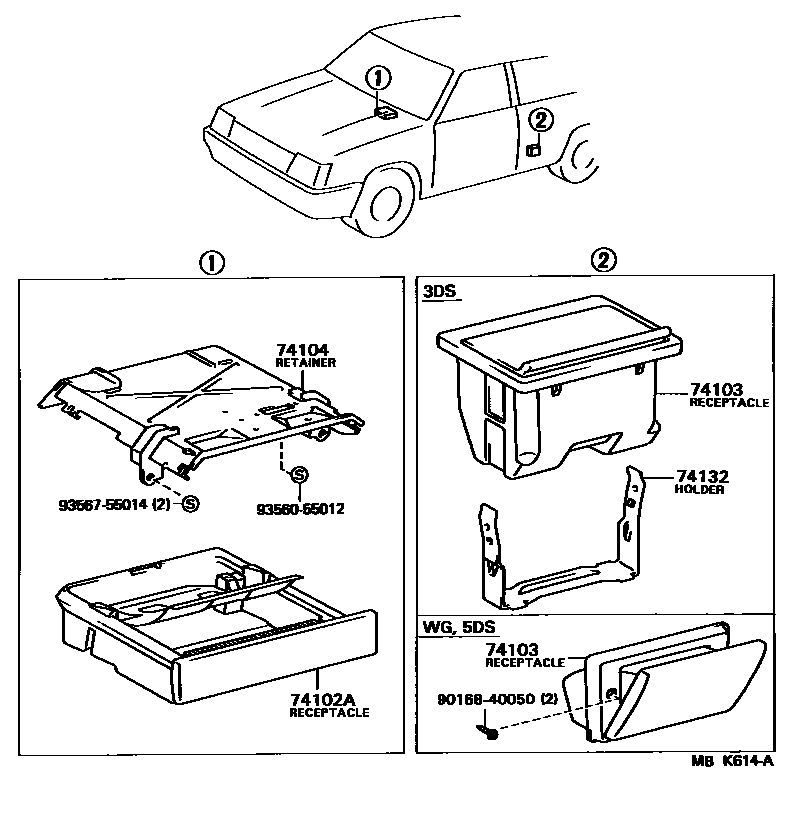

Toyota TERCEL — ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-16020iAL2#198208-198801

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-14020-02iAL21..5DS198208-198608

DARK WINE,DARK WINE

sub74130-95401

main74130-14020-11iAL2#198608-198801

BLACK,BLACK

sub74130-95401

main74130-14020-13iAL2#..WG;AL21..5DS198208-198408

GRAY,GRAY

sub74130-95401

main74130-14020-23iAL2#..WG;AL21..5DS198408-198608

GRAY,GRAY

sub74130-95401

main74130-14020-46iAL2#..WG;AL21..5DS198208-198408

BROWN,BROWN

sub74130-95401

main74130-14020-50iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub74130-95401

main74130-14020-55iAL2#..WG;AL21..5DS198408-198605

BEIGE,BEIGE

sub74130-95401

main74130-16020-02iAL21..3DS..(DLX,SR5)198208-198408

DARK WINE,RED/MAROON

main74130-16020-03iAL21..3DS..(DLX,SR5)198208-198408

GRAY,GRAY

main74130-16020-05iAL21..3DS..(DLX,SR5)198408-198608

BEIGE,BEIGE

main74130-16020-06iAL21..3DS..(DLX,SR5)198208-198408

BROWN,BROWN

main74130-16020-12iAL21..3DS..DLX198408-198608

DARK WINE,DARK WINE

main74130-16020-13iAL21..3DS..(DLX,SR5)198408-198608

GRAY,GRAY

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-16030iAL2#198208-198801

74132HOLDER, REAR ASH RECEPTACLE

main74239-22020iAL21..3DS..(DLX,SR5)198208-198608

9016840050

main90168-40050

9356055012

main93560-55012

9356755014

main93567-55014

7 parts on this diagram · 1 diagram in section
