E
EPC Data

Toyota TERCEL — ARMREST & VISOR

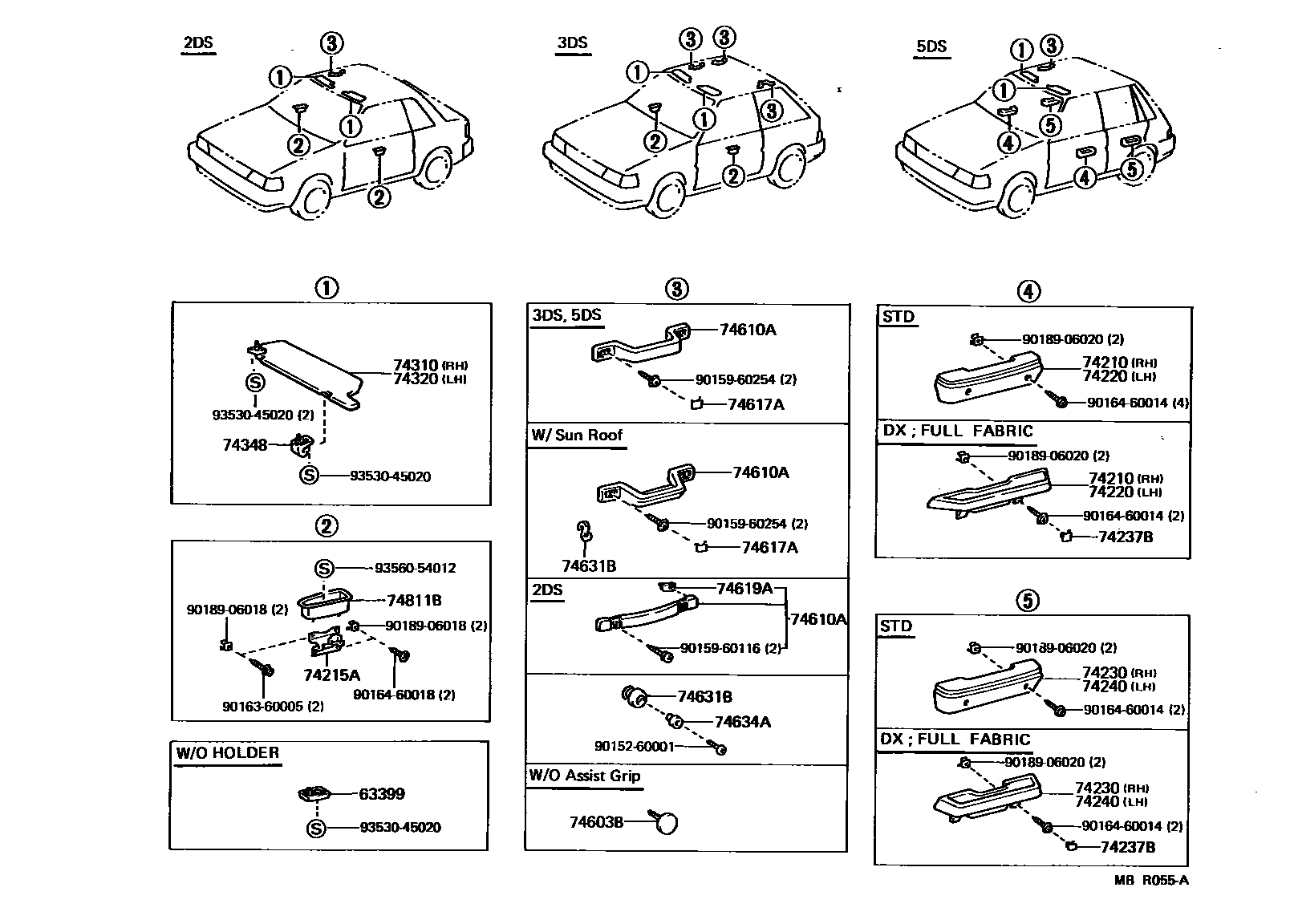

Parts diagram
63399COVER, VISOR HOLDER HOLE
main63399-20010-13i198808-199009
LIGHT GRAY,TRIM2#
74210ARMREST ASSY, FRONT, RH
main74210-10020-01i198808-199009
BLACK,TRIM2#
main74210-10020-14i198808-199009
BLUE,TRIM8#
main74210-10020-26i198808-199009
BROWN,TRIM4#
main74210-16030-01i198808-199009
W(FULL FABRIC SEAT C0VER),BLACK,TRIM2#
main74210-16030-04i198808-199009
W(FULL FABRIC SEAT C0VER),BLUE,TRIM8#
main74210-16030-06i198808-199009
W(FULL FABRIC SEAT C0VER),BROWN,TRIM4#
74215ABASE, DOOR ARMREST RH
main74215-16020×2i198808-199009
74220ARMREST ASSY, FRONT, LH
main74210-10020-01i198808-199009
BLACK,TRIM2#
main74210-10020-14i198808-199009
BLUE,TRIM8#
main74210-10020-26i198808-199009
BROWN,TRIM4#
main74220-16030-01i198808-199009
W(FULL FABRIC SEAT C0VER),BLACK,TRIM2#
main74220-16030-04i198808-199009
W(FULL FABRIC SEAT C0VER),BLUE,TRIM8#
main74220-16030-06i198808-199009
W(FULL FABRIC SEAT C0VER),BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-10020-01i198808-199009
BLACK,TRIM2#
main74210-10020-14i198808-199009
BLUE,TRIM8#
main74210-10020-26i198808-199009
BROWN,TRIM4#
main74250-16030-01i198808-199009
W(FULL FABRIC SEAT C0VER),BLACK,TRIM2#
main74250-16030-04i198808-199009
W(FULL FABRIC SEAT C0VER),BLUE,TRIM8#
main74250-16030-06i198808-199009
W(FULL FABRIC SEAT C0VER),BROWN,TRIM4#
74237BCAP, DOOR ARMREST BASE
main74237-16010-01×8i198808-199009
BLACK,TRIM2#
main74237-16010-04×8i198808-199009
BLUE,TRIM8#
main74237-16010-06×8i198808-199009
BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74210-10020-01i198808-199009
BLACK,TRIM2#
main74210-10020-14i198808-199009
BLUE,TRIM8#
main74210-10020-26i198808-199009
BROWN,TRIM4#
main74260-16030-01i198808-199009
W(FULL FABRIC SEAT C0VER),BLACK,TRIM2#
main74260-16030-04i198808-199009
W(FULL FABRIC SEAT C0VER),BLUE,TRIM8#
main74260-16030-06i198808-199009
W(FULL FABRIC SEAT C0VER),BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-16320-03i198808-198908
LIGHT GRAY,TRIM2#
main74310-16320-04i198808-198908
LIGHT BLUE,TRIM8#
main74310-16320-05i198908-199009
LIGHT BEIGE,TRIM4#
main74310-16330-03i198908-199009
W(VANITY MIRROR),LIGHT GRAY,TRIM2#
main74310-16330-04i198908-199009
LIGHT BLUE,TRIM8#
main74310-16330-05i198908-199009
LIGHT BEIGE,TRIM4#
main74310-16350-03i198908-199009
LIGHT GRAY,TRIM2#
main74310-16400-03i198908-199009
GRAY,TRIM2#
main74310-16400-04i198908-199009
LIGHT BLUE,TRIM8#
main74310-16400-05i198908-199009
LIGHT BEIGE,TRIM4#
main74310-16420-03i198908-199009
GRAY,TRIM2#
74320VISOR ASSY, LH
main74320-16150-03i198908-199009
LIGHT GRAY,TRIM2#
sub74320-16160
main74320-16150-04i198808-198908
LIGHT BLUE,TRIM8#
sub74320-16160
main74320-16150-05i198808-198908
LIGHT BEIGE,TRIM4#
sub74320-16160
main74320-16180-03i198908-199009
LIGHT GRAY,TRIM2#
main74320-16190-03i198908-199009
GRAY,TRIM2#
main74320-16190-04i198908-199009
LIGHT BLUE,TRIM8#
main74320-16190-05i198908-199009
LIGHT BEIGE,TRIM4#
main74320-16240-03i198908-199009
GRAY,TRIM2#
74348HOLDER, VISOR
main74348-12020-03i198810-199009
LIGHT GRAY,TRIM2#
sub74348-60010
sub74348-26020
main74348-12020-04i198810-199009
LIGHT BLUE,TRIM8#
sub74348-60010
sub74348-26020
main74348-12020-05i198810-199009
LIGHT BEIGE,TRIM4#
sub74348-60010
sub74348-26020
main74348-32010-14i198808-198810
DEEP BLUE,TRIM8#
sub74348-17010
main74348-32010-33i198808-198810
SHADOW GRAY,TRIM2#
sub74348-17010
main74348-32010-55i198808-198810
LIGHT BEIGE,TRIM4#
sub74348-17010
74603BCLIP (FOR ASSIST GRIP)
main90467-06048-25i198808-198809
LIGHT BEIGE,TRIM4#
main90467-06048-33i198808-198809
W(SUNROOF),LIGHT GRAY,TRIM2#
main90467-06048-34×2i198808-198809
LIGHT BLUE,TRIM8#,TYPE A
main90467-06048-B1i198908-199009
LIGHT GRAY,TRIM2#,TYPE A
main90467-06048-E0i198809-198908
LIGHT BEIGE,TRIM4#
main90467-06048-J0×5i198809-198908
LIGHT BLUE,TRIM8#,TYPE A
main90467-06072-13×2i198908-199009
LIGHT GRAY,TRIM2#,TYPE B
main90467-06072-15×2i198808-198908
LIGHT BEIGE,TRIM4#,TYPE B
main90467-06072-J0×2i198908-199009
LIGHT BLUE,TRIM8#,TYPE B
74610AGRIP SUB-ASSY, ASSIST
main74610-12040-04×2i198808-198908
LIGHT BLUE,TRIM8#,REAR
main74610-12040-13×2i198808-198908
LIGHT GRAY,TRIM2#,REAR
main74610-12040-15×2i198808-198908
LIGHT BEIGE,TRIM4#,REAR
main74610-14030-15i198808-198908
BEIGE,TRIM4#
sub74610-12050
main74610-14030-24i198908-199009
DEEP BLUE,TRIM8#
sub74610-12050
main74610-14030-33i198808-198908
SHADOW GRAY,TRIM2#
sub74610-12050
main74610-16010-03i198808-198908
LIGHT GRAY,TRIM2#
sub74610-12030
main74610-16010-04i198808-198908
LIGHT BLUE,TRIM8#,FRONT
sub74610-12030
main74610-16010-05i198808-198908
LIGHT BEIGE,TRIM4#,FRONT
sub74610-12030
74617APLUG, ASSIST GRIP
main74617-16010-20×2i198808-198908
LIGHT BEIGE,TRIM4#
main74617-16010-24×6i198808-198908
DEEP BLUE,TRIM8#
main74617-16010-53×2i198808-198908
W(SUNROOF),SHADOW GRAY,TRIM2#
74619ACUSHION, ASSIST GRIP
main74619-14010×2i198908-199009
74631BHOOK, COAT
main74631-10010-03i198808-198908
W(SUNROOF),LIGHT GRAY,TRIM2#
main74631-10010-04i198808-198908
W(SUNROOF),LIGHT BLUE,TRIM8#
main74631-10010-05i198808-198908
W(SUNROOF),LIGHT BEIGE,TRIM4#
main74631-12060-24i198808-198811
LIGHT BLUE,TRIM8#
main74631-12060-33i198808-199009
LIGHT GRAY,TRIM2#
main74631-12060-45i198808-199009
LIGHT BEIGE,TRIM4#
main74631-12060-J1i198811-199009
LIGHT BLUE,TRIM8#
74634ACOLLAR, COAT HOOK
main74634-12010i198808-199009
74811BHANDLE, DOOR PULL
main74811-16020-01×2i198808-199009
BLACK,TRIM2#
main74811-16020-04×2i198808-199009
BLUE,TRIM8#
main74811-16020-06×2i198808-199009
BROWN,TRIM4#
9015260001
main90152-60001
9015960116
main90159-60116
9015960254
main90159-60254
9016360005
main90163-60005
9016460014
main90164-60014
9016460018
main90164-60018
9018906018
main90189-06018
9018906020
main90189-06020
9353045020
main93530-45020
9356054012
main93560-54012

27 parts on this diagram · 1 diagram in section
