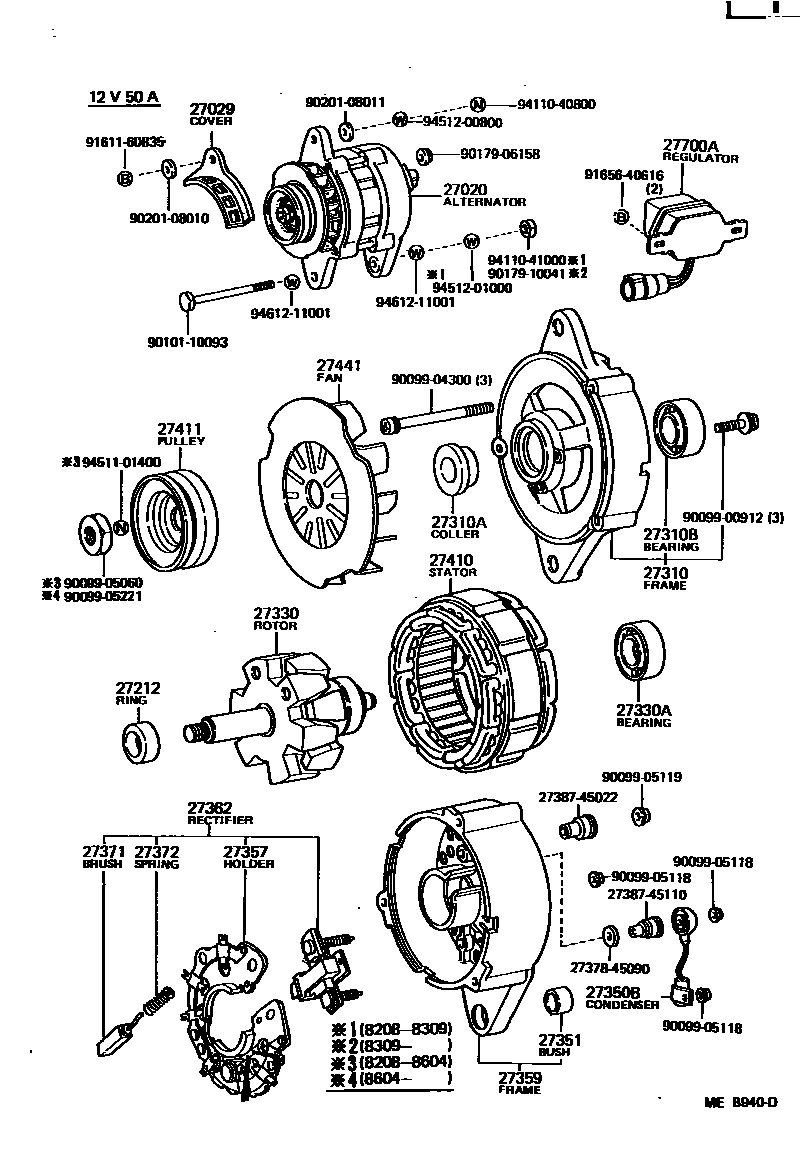

Toyota TERCEL — ALTERNATOR

0001 1 0002 1 0003 1

27020ALTERNATOR ASSY

main27020-15120i3AC..AL2#..USA198208-198801

12V 50A,12V 50A

main27060-15011i3A..AL21;3AC..AL2#..WG..MTM..CND198208-198408

12V 55A

main27060-15020i3AC..AL2#..USA198208-198408

12V 55A

main27060-15040i3A#..AL2#198408-198608

12V 60A

main27060-15041i3AC..AL2#198608-198801

12V 60A,12V 60A

27029COVER, ALTERNATOR

main27029-15012i3A#..AL2#198208-198801

12V 50A,55A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-15150i3AC..AL2#..USA198604-198801

12V 50A

main27412-45070i3A#..AL2#198208-198604

12V 50A,55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15120i3AC..AL2#..USA198501-198801

12V 50A

main27310-15160i3A#..AL2#198408-198501

12V 60A

main27310-15161i3A#..AL2#198501-198801

12V 60A

main27310-61013i3A..AL21;3AC..AL25..CND198208-198301

12V 55A

main27310-61023i3A..AL21;3AC..AL2#..WG..MTM..CND198301-198408

12V 55A

main27310-61070i3AC..AL2#..USA198408-198501

12V 50A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i3AC..AL2#..USA198501-198604

12V 50A

main27412-16040i3AC..AL2#..USA198604-198801

12V 50A

main27412-31040i3A#..AL2#198208-198501

12V 50A,55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i3A#..AL2#198208-198501

12V50A,55A

main90099-10142i3AC..AL2#..USA198501-198801

12V 50A

sub90099-10223

main90099-10152i3A#..AL2#198408-198501

12V 60A

main90099-10159i3A#..AL2#198501-198801

12V 60A

sub90099-10199

27330ROTOR ASSY, ALTERNATOR

main27330-10020i3A#..AL2#198501-198706

12V 60A

main27330-10021i3AC..AL2#198706-198801

12V 60A

main27330-15070i3A#..AL2#198208-198408

12V 55A

sub27330-45090

main27330-16030i3AC..AL2#..USA198604-198801

12V 50A

main27330-45070i3AC..AL2#..USA198208-198604

12V 50A

main27330-63041i3A#..AL2#198408-198501

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i3A#..AL2#198208-198801

12V 50A,55A

main90099-10140i3A#..AL2#198408-198801

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i3A#..AL2#198208-198801

12V 50A,55A

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3A#..AL2#198208-198801

12V 50A,55A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13110i3AC..AL2#..USA198208-198801

12V 50A

main27357-63040i3A#..AL2#198408-198801

12V 60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15090i3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND198208-198408

12V 55A

main27359-15120i3A..AL21;3AC..AL2#..WG..CND198208-198408

12V 55A

main27359-43081i3A#..AL2#198408-198801

12V 60A

sub27359-16081

27362RECTIFIER ASSY, W/BRUSH

main27362-15070i3A#..AL2#198208-198408

12V 55A

main27362-15120i3AC..AL2#..USA198208-198801

12V 50A

27371BRUSH, ALTERNATOR

main27371-31011×2i3A#..AL2#198208-198801

12V 50A,55A

main27371-63020×2i3A#..AL2#198408-198801

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3A#..AL2#198208-198801

12V 50A,55A

main27372-63020×2i3A#..AL2#198408-198501

12V 60A

sub27372-87501

main27372-72100×2i3A#..AL2#198501-198801

12V 60A

27410STATOR ASSY, ALTERNATOR

main27410-41080i3A#..AL2#198208-198801

12V 50A,55A

27411PULLEY, ALTERNATOR

main27411-15120i3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND198208-198408

12V 50A,55A

main27411-15160i3A#..AL2#198408-198501

12V 60A

main27411-15161i3A#..AL2#198501-198801

12V 60A

main27411-26111i3A..AL21;3AC..AL2#..WG..MTM..CND198208-198408

12V 55A

27441FAN, ALTERNATOR

main27441-34030i3A..AL21;3AC..AL2#..WG..MTM..CND198208-198408

12V 55A

main27441-63030i3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND198208-198801

12V 50A,55A

27700AREGULATOR ASSY, GENERATOR

main27700-13090i3AC..AL2#..USA198208-198801

12V 50A

sub27700-63010

main27700-43010i3A#..AL2#198208-198408

12V 55A

main27700-63021i3A#..AL2#198408-198801

12V 60A

sub27700-70030

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009905221

main90099-05221

9010110093

main90101-10093

9017906158

main90179-06158

9017910041

main90179-10041

9020108010

main90201-08010

9020108011

main90201-08011

9161160835

main91611-60835

9165640616

main91656-40616

9411040800

main94110-40800

9411041000

main94110-41000

9451101400

main94511-01400

9451200800

main94512-00800

9451201000

main94512-01000

9461211001

main94612-11001

41 parts on this diagram · 3 diagrams in section
