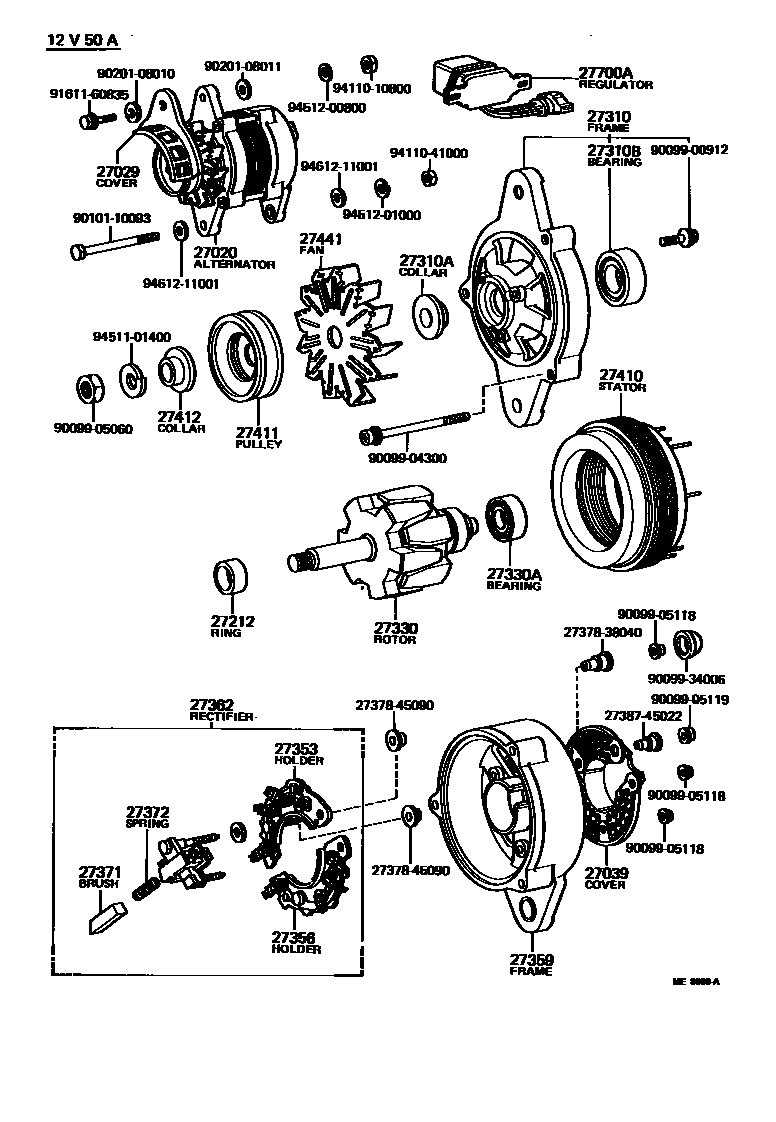

Toyota TERCEL — ALTERNATOR

0001 1 0002 1 0003 1

27020ALTERNATOR ASSY

main27020-15040i1AC,3AC..AL1#..USA197908-198207

12V 50A

main27020-15050i1AC,3A..AL1#197908-198008

12V 55A,W/O REGULATOR

main27060-15011i3A#..AL12198008-198207

12V 55A,W/REGULATOR

27029COVER, ALTERNATOR

main27029-15010i1AC,3A..AL1#197908-198008

12V 50A,55A

main27029-15011i3A#..AL12198008-198102

12V 50A,55A

main27029-15012i3A#..AL12198102-198207

12V 50A,55A

27039COVER, ALTERNATOR REAR END

main27039-15010i1AC,3A..AL1#197908-198008

12V 50A,55A

sub27039-61034

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i1AC,3A#..AL1#197908-198207

12V 50A,55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15050i1AC,3A..AL1#197908-198008

12V 55A

main27310-61013i3A#..AL12198008-198207

12V 55A

main27310-61023i1AC,3AC..AL1#..USA197908-198207

12V 50A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i1AC,3A#..AL1#197908-198207

12V 50A,55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i1AC,3A#..AL1#197908-198207

12V 55A

main90099-10126i1AC,3AC..AL1#..USA197908-198207

12V 50A

27330ROTOR ASSY, ALTERNATOR

main27330-15070i3AC..AL12198008-198207

12V 55A

main27330-45070i1AC,3AC..AL1#..USA197908-198207

12V 50A

sub27330-16030

main27330-45090i1AC,3A..AL1#197908-198008

12V 55A

sub27330-43040

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i1AC,3AC..AL1#..USA197908-198207

12V 50A

main90099-10116i1AC,3A#..AL1#197908-198207

12V 55A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-15040i1AC,3AC..AL1#..USA197908-198207

12V 50A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-24100i1AC,3AC..AL1#..USA197908-198207

12V 50A

sub27356-34051

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15040i1AC,3AC..AL1#..USA197908-198207

12V 50A

main27359-15050i1AC,3A..AL1#197908-198008

12V 55A

main27359-15070i3A#..AL12198008-198207

12V 55A

27362RECTIFIER ASSY, W/BRUSH

main27362-15041i1AC,3AC..AL1#..USA197908-198207

12V 50A

main27362-15070i3A#..AL12198008-198207

12V 55A

main27362-41080i1AC,3A..AL1#197908-198006

12V 55A

sub27362-70011

main27362-70010i3A..AL12;1AC..AL10..USA198006-198008

12V 55A

sub27362-70011

27371BRUSH, ALTERNATOR

main27371-31011×2i3A#..AL12198008-198207

12V 50A,55A

main27371-44070×2i1AC..AL10..USA198006-198008

12V 50A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3A#..AL12198008-198207

12V 50A,55A

main90099-17114×2i1AC,3A..AL1#197908-198006

12V 50A,55A

27410STATOR ASSY, ALTERNATOR

main27410-41080i1AC,3A#..AL1#197908-198207

12V 50A,55A

27411PULLEY, ALTERNATOR

main27411-26111i1AC,3A#..AL1#197908-198207

12V 50A,55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i1AC,3A#..AL1#197908-198207

12V 50A,55A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i1AC,3A#..AL1#197908-198207

12V 50A,55A

27700AREGULATOR ASSY, GENERATOR

main27700-13060i3AC..AL12..USA198008-198207

12V 50A,STD TYPE

main27700-28020i1AC..AL10..USA197908-198008

12V 50A,STD TYPE

sub27700-38070

main27700-38100i1AC,3A..AL1#197908-198008

12V 55A,IC TYPE

sub27700-28030

main27700-43010i3A#..AL12198008-198207

12V 55A,IC TYPE

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009934006

main90099-34006

9010110093

main90101-10093

9020108010

main90201-08010

9020108011

main90201-08011

9161160835

main91611-60835

9411010800

main94110-10800

9411041000

main94110-41000

9451101400

main94511-01400

9451200800

main94512-00800

9451201000

main94512-01000

9461211001

main94612-11001

39 parts on this diagram · 3 diagrams in section
