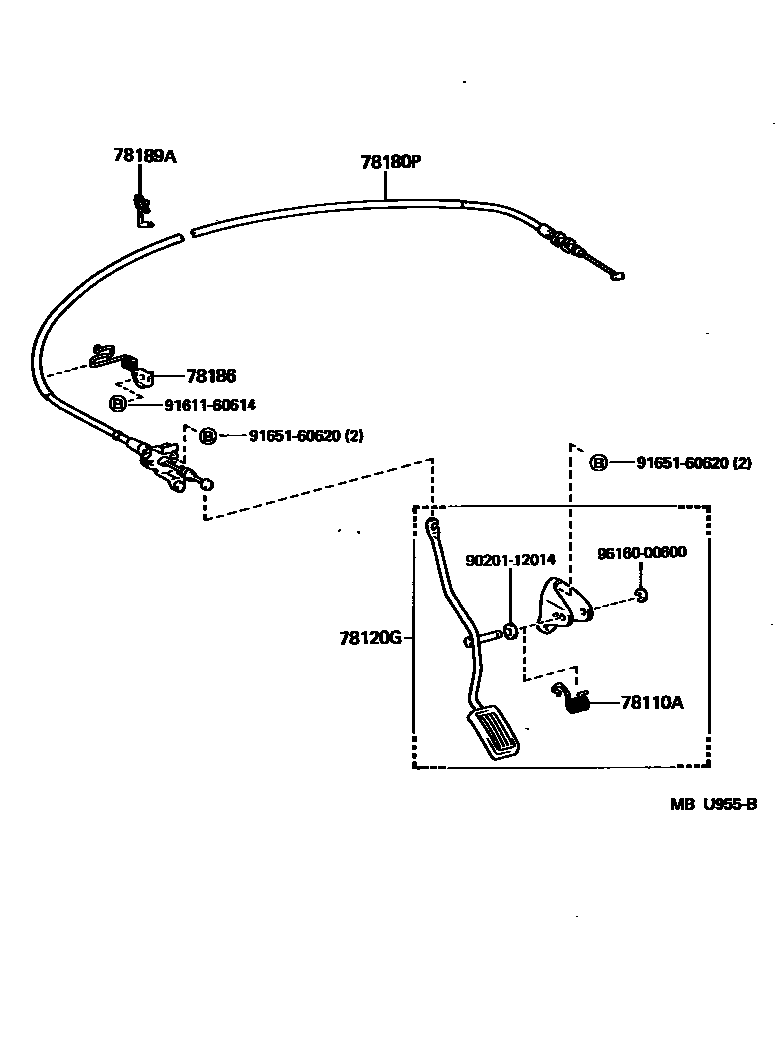

Toyota TERCEL — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-17003iEL42199009-199409

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16100iEL42199009-199409

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-16320iEL42199009-199409

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-16100iEL42199009-199409

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78186-10080iEL42199009-199409

9020112014

main90201-12014

9161160614

main91611-60614

9165160620

main91651-60620

9616000600

main96160-00600

9 parts on this diagram · 1 diagram in section
