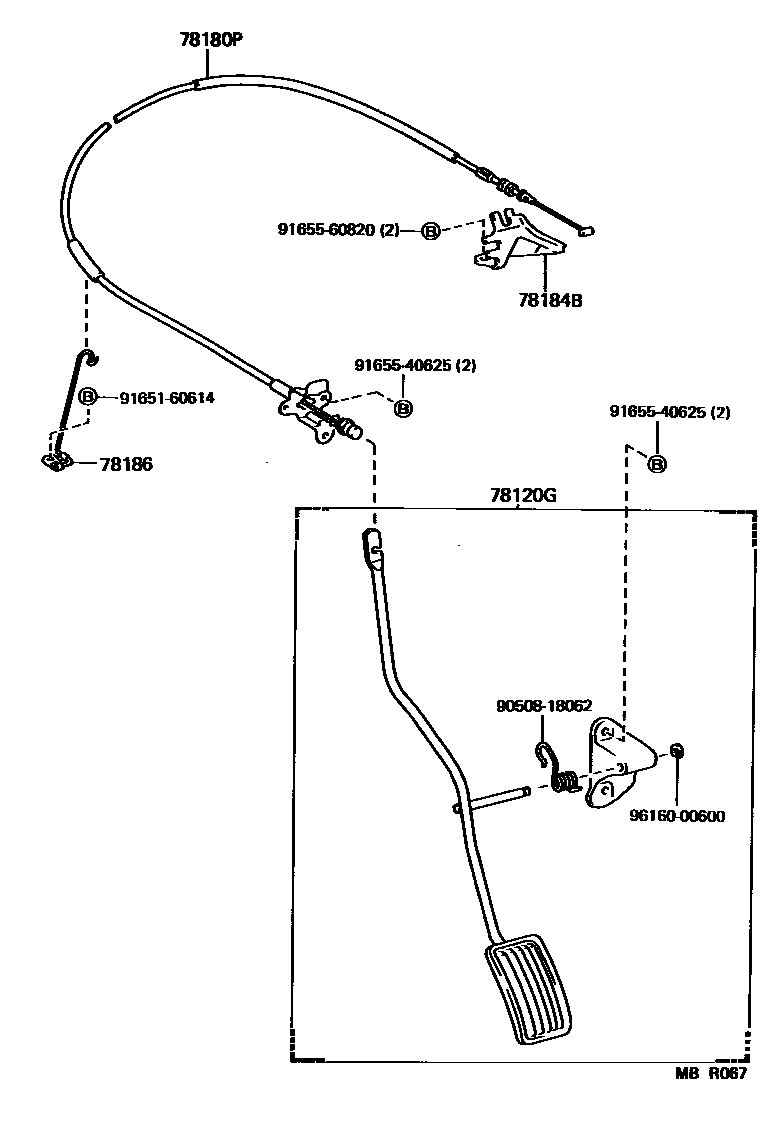

Toyota TERCEL — ACCELERATOR LINK

0001 1 0002 1

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16080iEL31198808-199009

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-16160iEL31..CBR198808-199009

main78180-16230iEL31..EFI198908-199009

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-10070iEL31..CBR198808-199009

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-16080iEL31198808-199009

9050818062

main90508-18062

9165160614

main91651-60614

9165540625

main91655-40625

9165560820

main91655-60820

9616000600

main96160-00600

9 parts on this diagram · 2 diagrams in section
