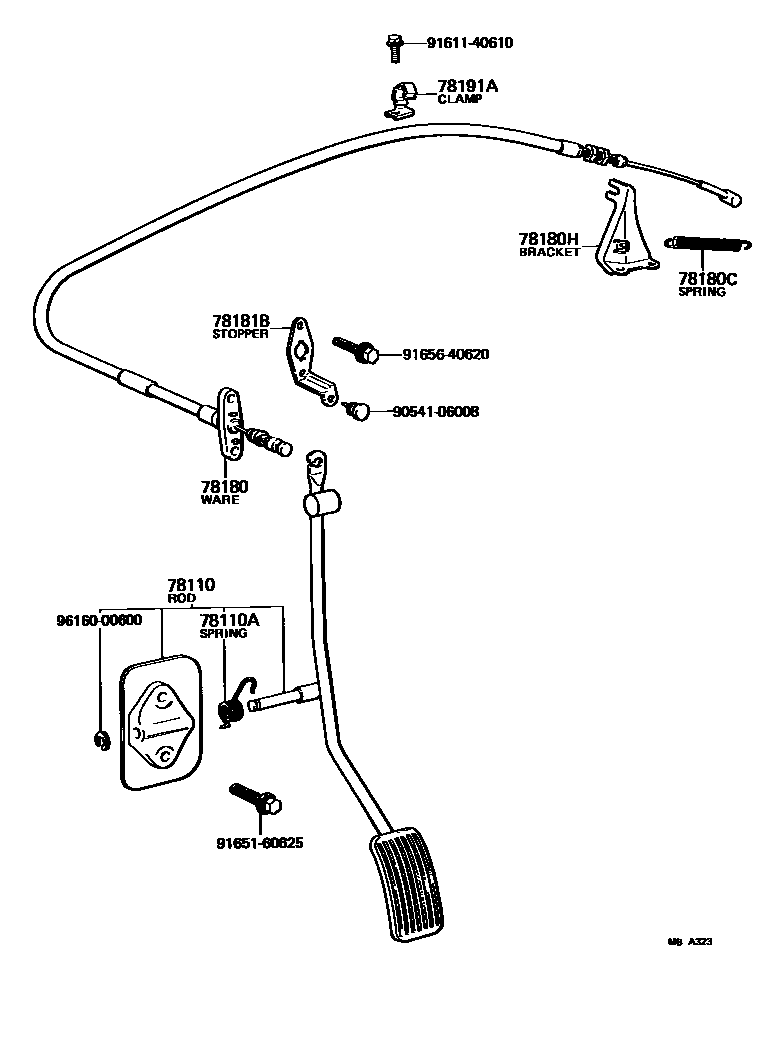

Toyota TERCEL — ACCELERATOR LINK

78110ROD ASSY, ACCELERATOR PEDAL

main78120-16021iAL1#197908-198207

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18014iAL1#197908-198207

78180WIRE ASSY, ACCELERATOR

main78180-16030iAL1#197908-198207

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-12004iAL1#197908-198207

78180HBRACKET, ACCELERATOR CONTROL CABLE

main78184-16020iAL1#197908-198207

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-16010iAL1#197908-198207

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main78183-16010iAL1#197908-198207

9054106008

main90541-06008

9161140610

main91611-40610

9165160625

main91651-60625

9165640620

main91656-40620

9616000600

main96160-00600

12 parts on this diagram · 1 diagram in section
