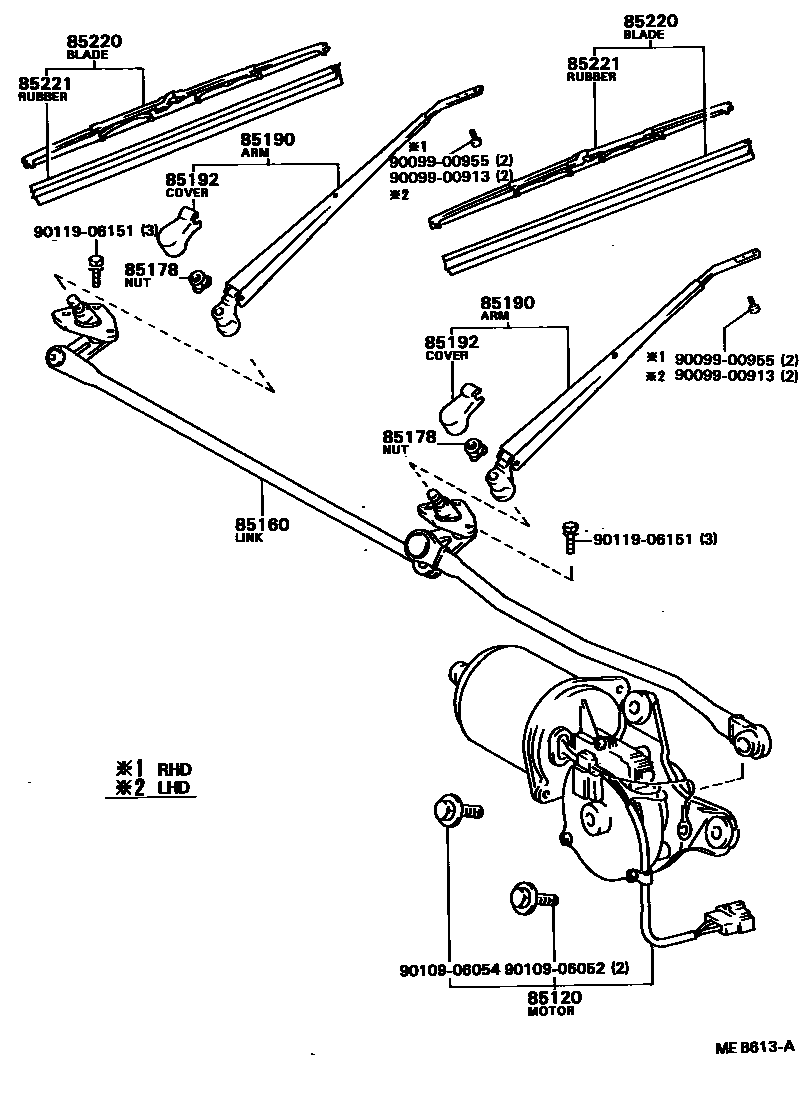

Toyota TERCEL — WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-16070iAL20,25..RHD..(ARL,GEN)198205-198801

main85120-16090iAL20,25..LHD..GEN198205-198801

main85120-16100iAL20,25..RHD..EUG198205-198801

main85120-16110iAL2#..LHD..EUR198205-198801

85160LINK ASSY, WINDSHIELD WIPER

main85160-16120iAL20,25..RHD198205-198801

main85160-16130iAL2#..LHD198205-198605

main85160-16140iAL25..LHD198605-198801

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016×2iAL2#198205-198801

85190ARM ASSY, WINDSHIELD WIPER

main85190-16070iAL20,25..RHD..(ARL,GEN)198205-198801

RH

main85190-16080iAL20,25..RHD..EUG198205-198801

RH

main85190-16090iAL2#..LHD..EUR198205-198801

LH

main85190-16100iAL20,25..LHD..GEN198205-198801

LH

main85210-16010iAL20,25..RHD198205-198801

LH

main85210-16020iAL2#..LHD198205-198801

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-16010×2iAL20,25..RHD198205-198801

main85192-16020×2iAL2#..LHD198205-198801

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14320iAL20..LHD198205-198208

LH

main85220-14370iAL20..LHD198205-198208

RH

main85220-16100iAL20,25..RHD198205-198308

RH

main85220-16110iAL20,25..RHD198205-198308

LH

sub85220-16130

main85220-16140iAL2#..LHD198208-198306

LH

main85220-16150iAL2#..LHD198208-198306

RH

sub85220-16640

main85220-16180iAL20,25..RHD..EUG198308-198801

RH

main85220-16270iAL2#..LHD198306-198801

LH

sub85220-16640

main85220-16320iAL20,25..RHD198308-198801

LH

sub85220-16321

main85220-16340iAL2#..LHD198306-198801

RH

sub85220-16640

main85220-16350iAL20,25..RHD..(ARL,GEN)198308-198801

RH

85221BLADE, WINDSHIELD WIPER

main85221-12120×2iAL2#..LHD198205-198306

sub85214-24H90

main85221-30080×2iAL20,25..RHD198205-198308

sub85223-12690

main85221-30100iAL20,25..RHD..EUG198308-198801

RH

sub85221-40040

main85221-30120iAL20,25..RHD198308-198801

RH

sub85221-40040

9009900913

main90099-00913

9009900955

main90099-00955

9010906052

main90109-06052

9010906054

main90109-06054

9011906151

main90119-06151

12 parts on this diagram · 1 diagram in section
