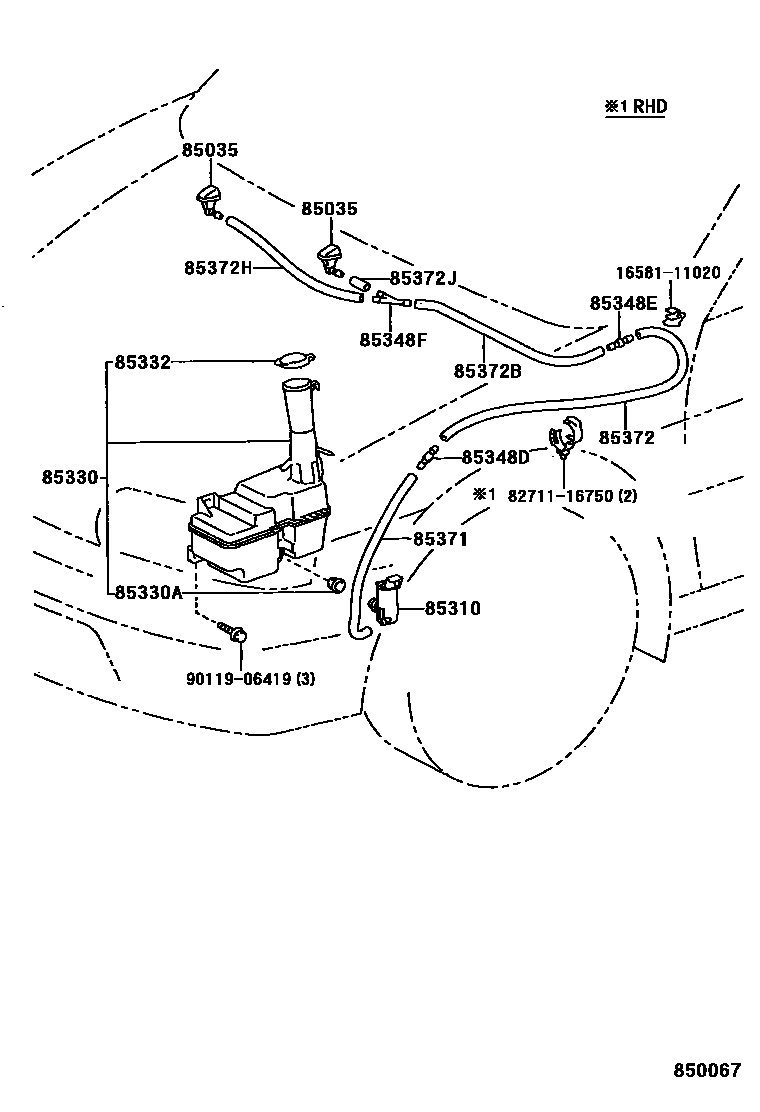

Toyota TERCEL — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16070×2iEL5#..LHD199409

main85381-30020×2iEL50..RHD199712

sub85381-30030

main85381-30020-C1×2iEL50..RHD199409-199712

BLACK,TRIM1#,4#

sub85381-30030

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iEL5#199409-199608

main85330-10280iEL5#199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070iEL5#199409

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEL5#199409

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iEL5#199409-199608

main85316-33050iEL5#199608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85349-89122iEL5#199409

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-89122iEL5#199409

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85348-14390iEL5#199409

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iEL5#199409

L=1450(*H,L=380)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iEL5#199409

L=1800(*H,L=600)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iEL5#199409

L=1450(*H,L=570)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iEL5#199409-199412

L=1000(*H,L=550)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33299iEL5#199409

L=1000(*H,L=40)

1658111020CLAMP, HOSE(FOR WATER HOSE)

main16581-11020

8271116750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16750

9011906419

main90119-06419

16 parts on this diagram · 1 diagram in section
