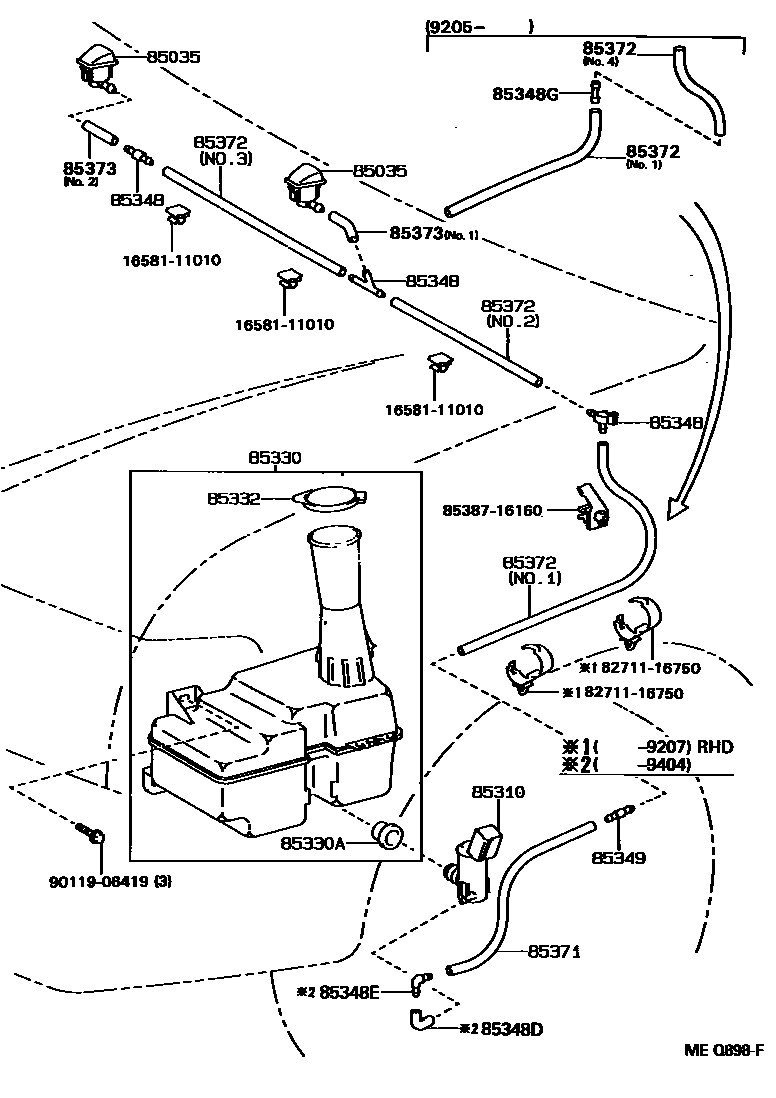

Toyota TERCEL — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16020×2iEL40..LHD199009-199409

sub85381-30020

main85381-16030×2iEL40..RHD199009-199409

sub85381-30020

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iEL40199009-199409

sub85330-10280

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070iEL40199009-199409

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEL40199009-199409

85332CAP, WINDSHIELD WASHER JAR

main85316-10190iEL40199009-199309

main85316-16070iEL40199309-199409

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390iEL40199009-199409

3 WAY

main85375-10260iEL40199009-199409

2 WAY

main85375-16160iEL40199009-199409

L JOINT

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iEL40199009-199404

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iEL40199009-199404

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-50040iEL40199205-199409

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iEL40199009-199409

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iEL40199404-199409

L=1450

main90099-33299iEL40199009-199208

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iEL40199205-199409

L=1450,NO.4

main90446-06013iEL40199009-199409

L=1000,NO.3,NO.2

main90446-07001iEL40199205-199409

L=1800,NO.1

main90446-07012iEL40199009-199205

L=1800(*H,L=900),NO.1

sub90099-33368

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEL40199009-199409

L=1450,NO.1

main90099-33299iEL40199009-199409

L=1000,NO.2

1658111010CLAMP, HOSE(FOR WATER HOSE)

main16581-11010

8271116750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16750

8538716160CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-16160

9011906419

main90119-06419

17 parts on this diagram · 1 diagram in section
